3 axles flat deck trailer is a commonly used transport tool, made of high-strength international steel. The flatbed trailer has a light weight, but has a high load-bearing capacity, along with excellent anti-twisting and anti-bumping capabilities. The frame of our flat deck trailer adopts through-beam structure, the main beam designed with a flat or gooseneck design, its height ranges from 450mm to 550mm, the frame undergoes shot peening, and the crossbeam penetrates the longitudinal beam, being welded as a single unit to ensure structural stability and strength.
The flat deck trailer main to transport containers, steel, cement, and bulk cargo, agricultural product transportation is a significant application for flatbed semi trailer. Its flat platform can ensure the integrity and quality of agricultural products during transit. Furthermore, flatbed trailers can also be utilized for transporting a variety of goods, including wood, automobiles, and chemical products.
Please review the specifications below for our 3 axles 40 feet flat deck trailer. All flatbed trailer dimensions and load capacities can be customized to meet your requirements.
3 axles flat deck trailer for sale | |
Manufacturer | Jinan Benhe Machinery Co.,Ltd |
Tare Weight | Approx. 7.0 T |
Dimension | 12500*2500*1500mm |
Loading Capacity | 60T |
Axle | 13T, 3axles |
Tire | 12R22.5, 12+1 PCS |
Suspension | Leaf spring suspension |
King pin | 2.0 or 3.5inch, JOST brand |
Landing gear | JOST, 28 tons |
Main beam | Height is 500mm, material is Q345B carbon steel |
Side beam | 160mm channel steel |
Bottom Platform | 3mm checkered steel plate |
Twist lock | 12 PCS |
Brake chamber | Wabco re 6 relay valve; T30/30+T30 spring brake chamber; two units of 45L air tanks |

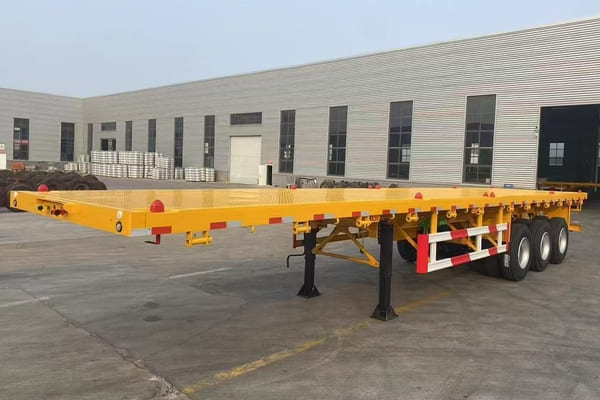

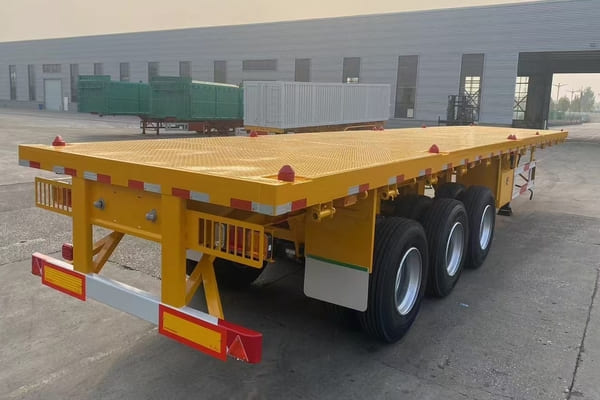

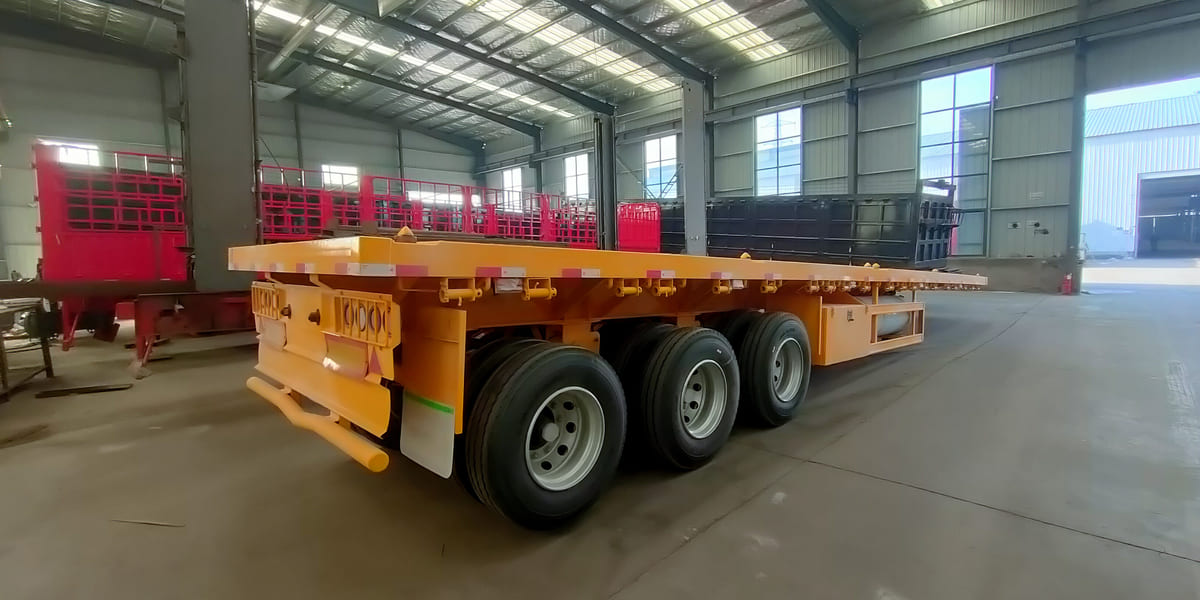

3 Axles Flat Deck Trailer for Sale
60 Tons Flat Bed Trailer With Cheap Price
BENHE flat deck trailer frame with 26 pcs cross beams. Side supports connect the cross beams to the main beam, distributing the stress across the main beam. The distance between each side support does not exceed 50 cm, enhancing the trailer's strength and extending its lifespan.
40ft flatbed trailer equipped with 12 container twist locks can transport either one 40-foot container or two 20-foot containers.

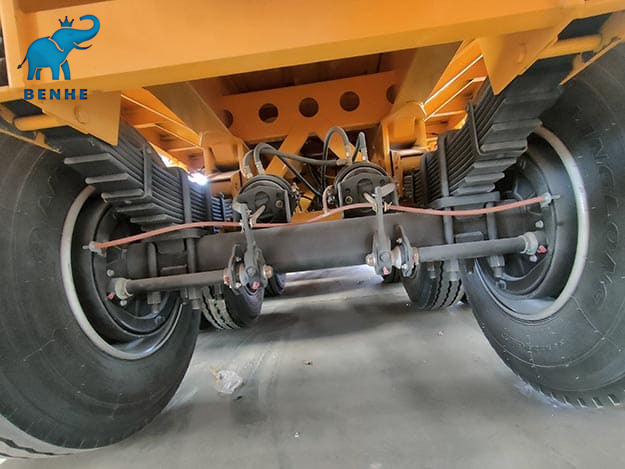

Customers can choose the flatbed deck trailer with heavy duty spring suspension or air suspension, spring suspension can meet high loads of requirements, air suspension is more suitable for good road conditions and provides a smoother operation.
The flat deck trailer dimensions and load capacity can be customized, we have 2 axles 20ft flatbed trailer, 2 axles 40ft flatbed semi trailer, 3 axles 40ft flatbed container trailer, 4 axles flatbed tractor trailer, flatbed trailer with super single tire and double tires, we can customize it according to your needs.
BENHE flatbed truck trailer adopts well- known parts, such as BPW, FUWA, JOST, and WABCO ect, it can save a lot of maintenance costs for customers, ensuring a longer lifespan.
Flabed deck trailer with 6 pcs reinforced beams
Side beam adopts 16# channel steel, 12 pcs container twist lock.
The flat deck trailers will be sprayed with wax before shipment, and covered with tarpaulin.
We will choose the most suitable shipping solution according to the flat deck trailer quantity, including bulk carrier, ro-ro ship and container transportation.
China Benhe Vehcile was established in 2010, we are a leading semi trailers manufacturer in China. Our main products include flatbed semi trailer, low bed semi trailer, fence semi trailer, fuel tanker trailer, dump trailer, cement bulker trailers, special-purpose semi-trailers and trailer parts. The production plant covers an area of 300,000 square meters and employs over 600 staff members. Thanks to our advanced technology, reliable quality, and exceptional service, we have successfully sold our products to more than 80 countries, including Ghana, Zimbabwe, Zambia, Tanzania, Sudan, Nigeria, Kenya, Uganda, Mozambique, Namibia, Angola, Botswana, Malawi, Rwanda, Congo, Cote d'Ivoire, Sierra Leone, Senegal, Cameroon, Mali, Mexico, Chile, Ecuador, Saudi Arabia, United Arab Emirates, Uzbekistan, Kazakhstan etc.
China Benhe semi trailer factory
If you are interested in our semi trailers, please fill in the below inquiry blank.
