The 35CBM dumper semi trailer is designed for transporting bulk materials such as coal, sand, and grain. It uses high-strength steel construction and a lightweight design. We offer U-shaped and square dumper trailers with load capacities of 40 tons, 60 tons, 80 tons, and 100 tons.
Benbe 35CBM dumper semi trailer adopts the Hyva hydraulic system, and the unloading angle can reach 45-50°, which greatly improves the operation time, customer can choose air suspension or leaf spring to adapt to complex road conditions.
Jinan Benhe Machinery Co.,Ltd is a professional semi trailer manufacturer. Our 35CBM dumper semi trailer is very popular in Tanzania, Zambia, Nigeria and other countries now.
Dimensions | 9900*2550*3400 mm |
Cargo box dimensions | 9200*2400*1700 mm |
Loading capacity | 60 Tons |
Axle | 13 Tons, 3 axles, factory configuration, FUWA / BPW optional |
Main Beam | Q345 Manganese Steel, Hardox 450 |
Side Plate | 4.0mm |
Bottom Plate | 6.0mm |
Suspension | Heavy duty mechanical suspension |
Leaf Spring | 90(W)mm x 13(Thickness)mm x 10 layers, 3 Sets |
Kingpin | JOST brand, 2.0 or 3.5inch (bolted or welded type) |
Landing Gear | 28 Tons |
Braking system | WABCO Emergency relay valve |
Tire Type & Size * NO. | 315/80R22.5, 12R22.5 & 12 pcs |

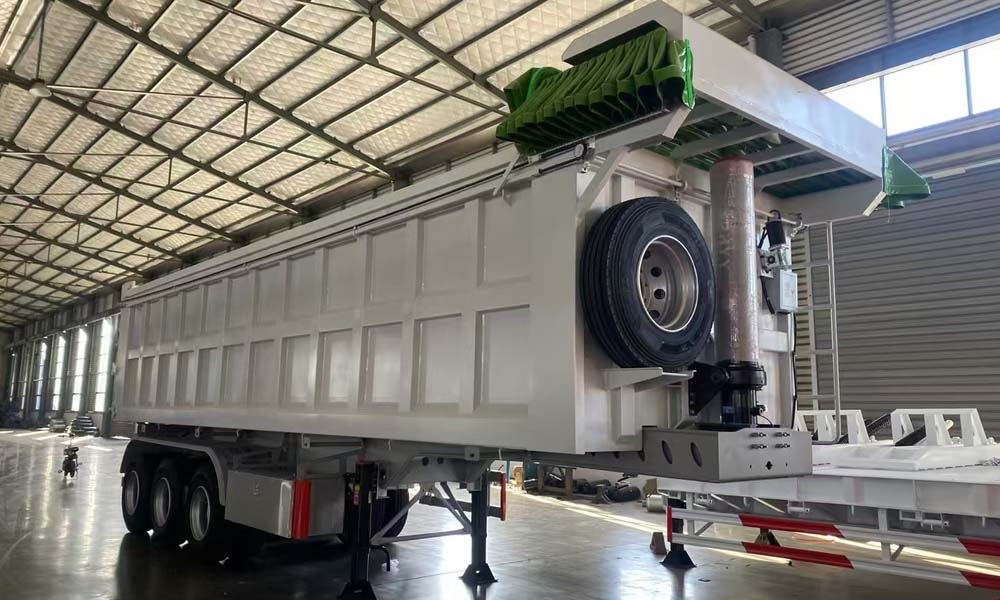

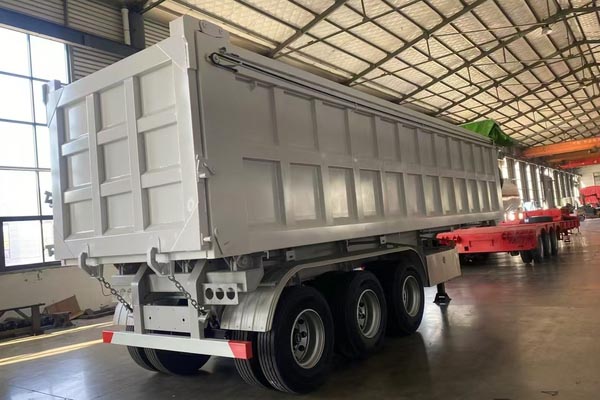

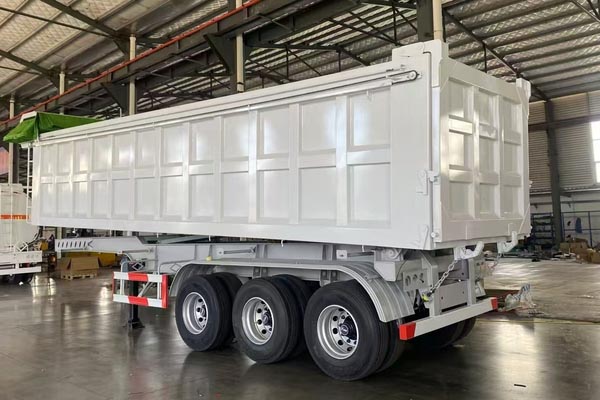

35CBM Dumper Semi Trailer for Sale
35CBM Dumper Semi Trailer Price
Large-Diameter Hydraulic Cylinder
The dumper trailer with Hyva brand hydraulic cylinder, the oversized cylinder diameter delivers 30%-50% greater lifting capacity for enhanced tonnage performance.
Stability-Optimized Design
Extended hydraulic stroke combined with multi-stage cylinder control achieves a 50°-52° lifting angle, reducing cargo bed center-of-gravity displacement by over 15% to effectively mitigate rollover risks.
Dual-Plate Main Beam
Constructed with high-strength steel plate laminate welding (690MPa yield strength), supported by four sub-beams and a cruciform balance beam - maintaining structural integrity in high-stress zones while reducing dead weight.
Mining Duty Performance
Engineered to withstand 60-80 tons of ore impact loading, with wear-resistant steel liner plates offering 10+ years of service life in the cargo bed.
Q: What are the main products of Jinan Benhe Machinery Co.,Ltd?
A: Our main products are dump trailer, low bed semi trailer, container transport semi trailer, fence semi trailer, side wall semi trailer, fuel tanker trailer, bulk cement trailer, trucks and spare parts.
Q: Where is your factory address?
A: Our factory is located in Liangshan County Industrial Park, Shandong Province, China.
Q: What is your payment method?
A: TT payment, 30% deposit, 70% balance payment before delivery.
Q: How long do you need to finish a trailer?
A: Usually the delivery time is 20-30 days after get 30% deposit.
Q: What's your warranty policy?
A: The vehicle frame is guaranteed for 3 years excluding wearing parts, under normal use if there is damage to the spare parts, we will provide our customers new spare parts for free.
Q: How do you transport the dumper semi trailer?
A: We transport the dumper trailer by RO-RO ship, bulk cargo ship or 40'HC standard container or even 45' container. Our factory possesses long-term cooperation with ship agency which can provide you lowest shipping fee.
