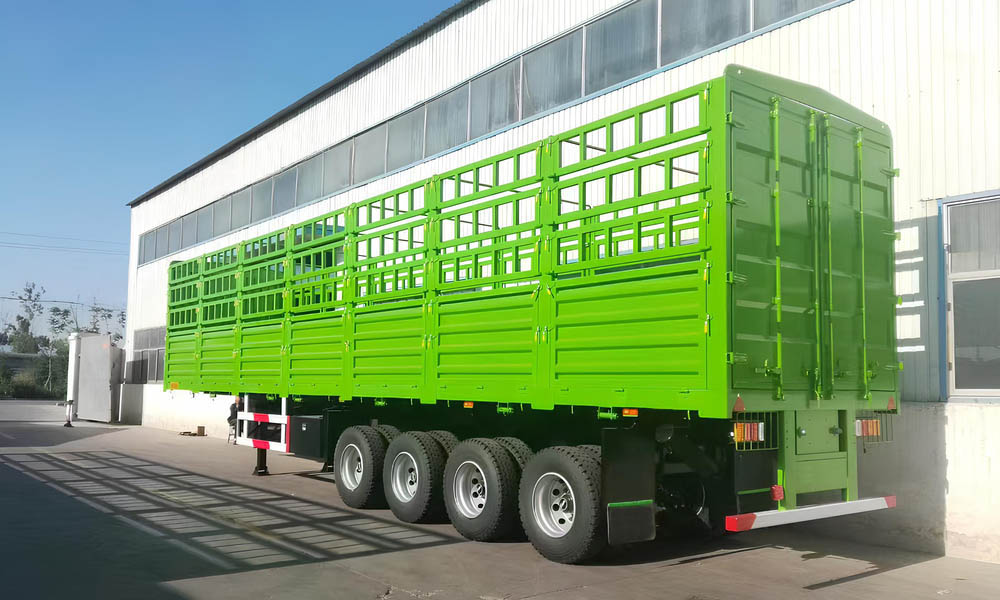

The 4 axles 80 tons fence cargo trailer is an efficient and durable model designed for medium- to long-distance logistics transportation.
Our this 80 tons fence cargo trailer adopts a four-axle design that provides exceptional load-bearing capacity and stability. It is highly suitable for transporting all kinds of bulk goods, such as vegetables, fruits, grain, steel, wood, and more.
Fence cargo semi trailer main beam use high-quality Q345 manganese steel. The gooseneck features double plate reinforcement, while the mechanical suspension is thickened to 8 mm, the leaf spring is reinforced to 16 mm to ensure safety and durability under complex road conditions.
This 4 axles 80 tons stake semi trailer total length of 14 meters, a width of 2.5 meters, and a total height of 3.5 meters (including the fence height of 2.0 meters). The dimensions can be customized according to client specifications.
Please review the following parameters for the 4 axles 80 tons fence cargo trailer, provided for reference only. These specifications are customized to our a Nigerian customers before. We will discuss your needs in detail before providing a quote, after which our engineers will deliver the most effective solution.
Name | 4 Axles Fence Semi Trailer |
Manufacturer | Benhe Vehicle |
Dimensions | 14,000 x 2,500mm x 3,500mm (L X W X H) |
Load capacity | 80 Tons |
Fence height | 2,000mm |
Axle | 13 Tons, 3 axles, factory configuration (FUWA / BPW optional) |
Main Beam | Q345 Manganese Steel Main beam height: 500mm Upper plate: 18mm ；Middle plate: 12mm Bottom plate: 20mm |
Side Beam | 160mm Channel Steel |
Bottom Plate | 3.0mm checkered plate |
Suspension | Heavy duty mechanical suspension |
Leaf Spring | 90(W)mm x 16(Thickness)mm x 10 layers, 8 Sets |
Kingpin | JOST brand, 2.0 or 3.5inch (bolted or welded type) |
Landing Gear | 28 Tons |
Braking system | WABCO Emergency relay valve |
Tire Size * NO. | 12R22.5 & 16 pcs |
4 Axles Fence Semi Trailer for sale
80 Tons Fence Cargo Trailer Price
BENHE Brand Fence Trailer For Sale in Nigeria

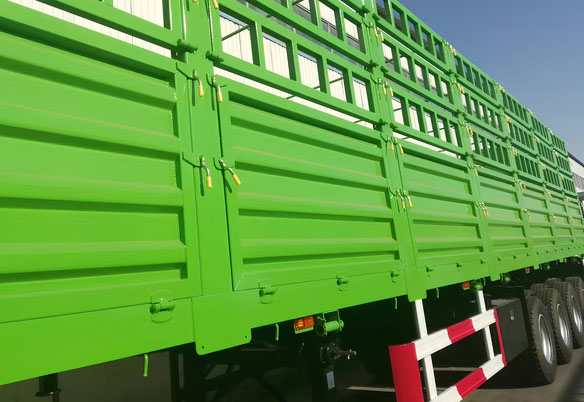

Fence Truck Trailer for Grains Transportation
Fence cargo trailer is constructed from high-quality manganese steel, featuring reinforced beams, suspension, and leaf springs to ensure optimal load-bearing capacity and adaptability to various road conditions.

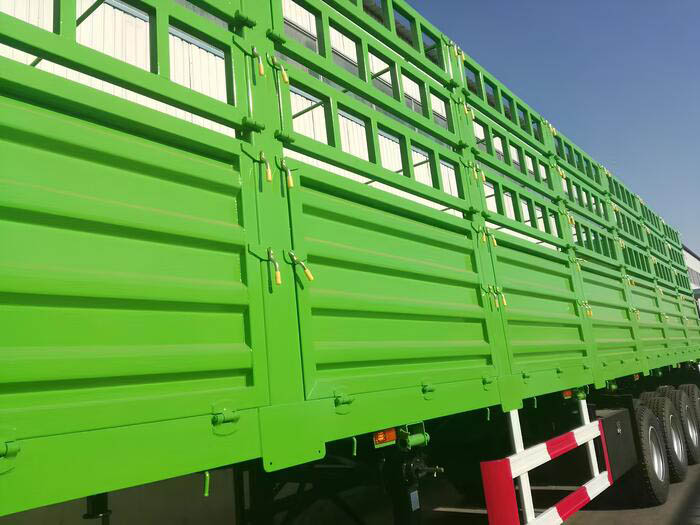

The side fence can be disassembled for easy loading and unloading, making it suitable for various types of goods. The trailer is equipped with container locks, allowing for the transportation of containers as well.
Our fence semi trailer uses well-known accessories, making maintenance and part replacement convenient. The key components are made of wear-resistant materials to extend their service life.
Our fence truck trailers are equipped with thick, anti-slip patterned floors designed to prevent cargo from shifting during transport. Each fence trailer undergoes sandblasting, rust-proofing, and painting, ensuring high resistance to rust.
The main beam and side beams of our fence cargo trailer are welded together in a continuous manner, unlike the segmented welding method employed in other vehicles on the market. This design improves the vehicle's load-bearing capacity, reduces the risk of fractures, and extends its service life.

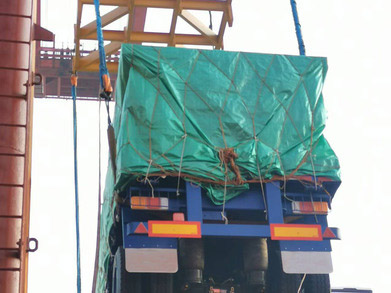

1. Waterproof wax is sprayed before leaving the factory, and the fence truck trailer covered with waterproof rain cloth.

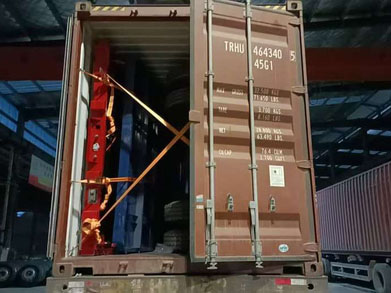

2. Choose the most cost-effective transportation method for customers based on the number of fence trailers. There are generally 3 units fence cargo trailers as a stack for shipment, bulk shipment or Ro-Ro shipment, container shipment if size available.
Q: What's your delivery time?
A: 10-15 days after get 30% deposit.
Q: How about the warranty?
A: The vehicle frame is guaranteed for three years, we will provide our customers new spare parts with free if there is damage to the spare parts.
Q: How do you transport the fence semi trailers?
A: We transport the trailer by RO-RO ship, bulk cargo ship or 40' HC standard container or even 45' container.
Q: What is your MOQ?
A: One unit
Q: I want to customize the fence cargo trailer as my own requirements, is this possible?
A: We can design and produce special products according to customer requested. Such as: special size, special control, or OEM, etc.
Q: What is your payment method?
A: 30% TT deposit, 70% TT balance before shipment.
Q: Where is your factory?
A: Our factory is located in Liangshan County Industrial Park, Shandong Province, China.
