The bulk cement trailer is mainly used for bulk transportation of dry powder materials, such as dry cement, fly ash and lime powder. Equipped with a pneumatic unloading system, it can ensure loading and unloading quickly, the cement bulker trailer more suitble for construction, chemical, and agriculture industries.
BENHE 3 axles 50 Tons bulk cement trailer is the most popular model.
Dimensions | 9,500*2,500*4,000 mm (L X W X H) |
Volume | 50 TONS |
Tanker thickness | Front/Rear plate 5mm; body 4mm |
Air Compressor | BOHAI 12m³double-cylinder Rated working pressure: 0.25Mpa |
Engine | WEICHAI Tianhe Brand 4102 |
Manhole | 2PCS, Carbon steel,Euro standard dimension.500mm |
Main Beam | Q345B steel fabricated I-Beams |
Shape & Color | V-shape; White(Optional) |
Axles | 13Ton*3units FUWA brand |
Leaf Spring | 90mm(w)*16mm(t)*10 layer |
Kingpin | 2"(50mm) or 3.5"(90mm) |
Suspension | Mechanical |
Tire & Size * NO. | 12R22.5 & 12 pcs Triangle brand |
| Rim Size * NO. | 9.00*22.5 & 12 pcs |
| Landing Gear | 28T Jost brand, double speed |

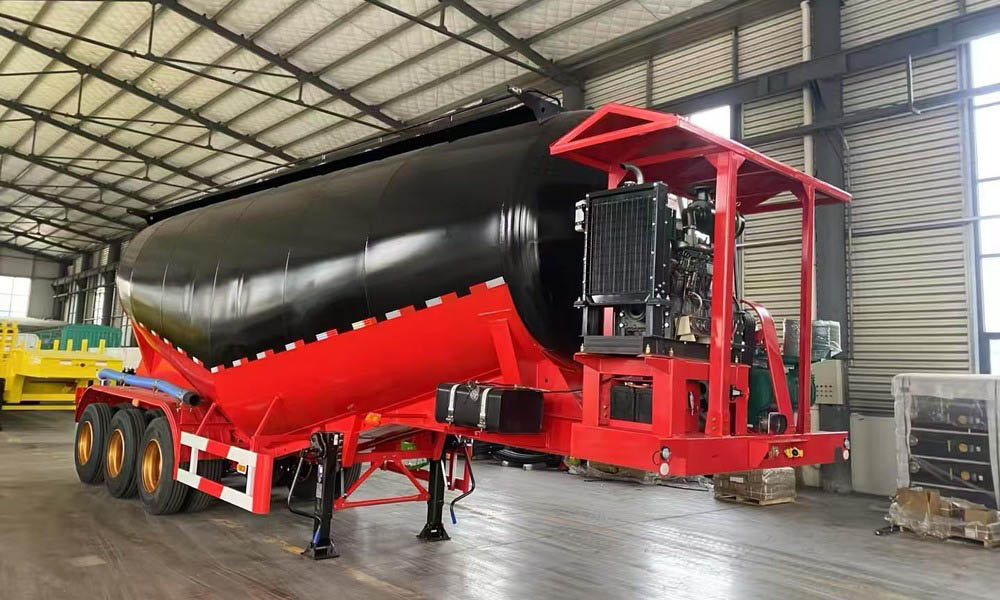

50 tons bulk cement trailer for sale
China manufacturer 3 axles cement bulk trailer
3 axle 50 ton dry bulk trailers for sale

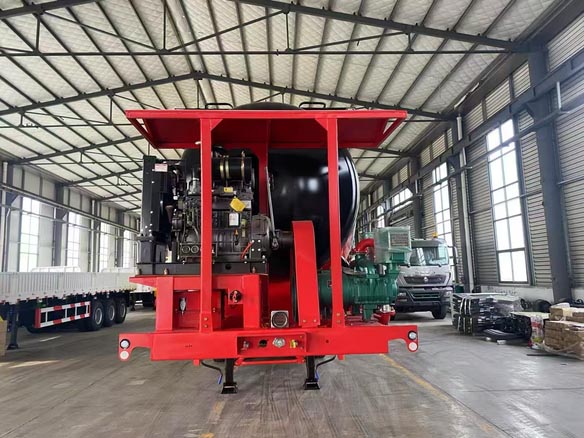

Tri-axle cement trailer with diesel and compressor
Powder tank trailer manhole cover is produced by a professional manufacturer and has better pressure resistance, safety and reliability;
Cement Bulk Trailer product pipelines are equipped with double safety valves as standard;
Optimized design of tank section. Better strength, quality-assured lightweight.
Bulk Cement Trailer has passed high-standard air tightness and pressure tests to ensure the safety of the product;
Bulk Cement Tank Trailer all parts are CNC blanked by a 13M large-scale laser cutting platform. Low-temperature blanking does not affect the best performance of the raw materials. High-precision blanking can better guarantee the quality of the entire vehicle;
The vehicle sandblasting products make the appearance of the paint beautiful and of better quality. The lightweight tanks especially need to have high-level anti-corrosion properties;
Professional production base, high-end production integrated flow workshop, and as a well-known domestic special vehicle manufacturing company, it produces ordinary dry bulk trailer, with more stable and reliable quality.
Special 3D design software, product modularization and standardization.

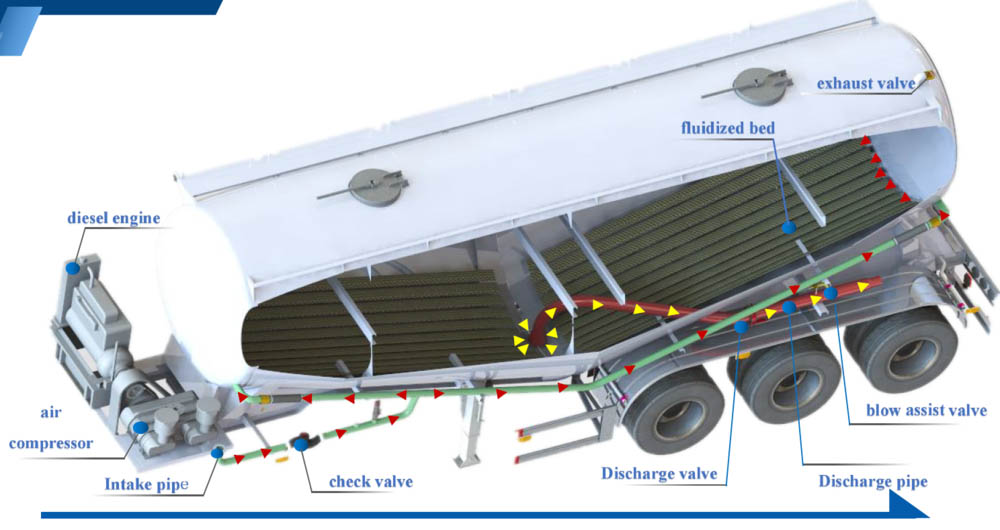

Start the air supply：After the diesel engine is started, the air compressor is driven to supply air to the air intake pipe.
Gas enters the tank：Enter each tank air chamber through the air inlet pipeline (the pipeline has a non-return function).
Ressure reaches 0.2Mpa： 0.2Mpa is the design pressure value used by the tank. (The pipeline has a pressure limiting device)
Make sure the discharge pipe is clear： Open the blowing valve to ensure that the pipeline is unobstructed and prepare to start unloading.
Unloading: Open the discharge butterfly valve, due to the pressure difference inside and outside, the powder is transported to the storage tower through the pipeline along with the gas. (The blowing valve controls the conveying density and speed).

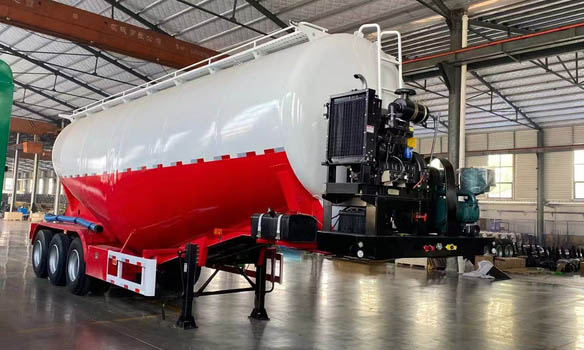

1. Before leaving the factory, the powder tanker trailer will be sprayed with waterproof wax and covered with waterproof tarpaulin.
2. Choose the most cost-effective transportation method for customers. cement bulker trailer shipment by bulk shipment, 40-foot frame container or RO-RO shipment.
Jinan Benhe Machinery Co., Ltd., established in 2010, is a leading manufacturer of semi trailers in China. Our primary products include flatbed semi trailer, low bed semi trailer, fence semi trailer, fuel tanker trailer, dump trailer, cement bulker trailers, special-purpose semi-trailers and trailer parts. The production plant covers an area of 300,000 square meters and employs over 600 staff members. Thanks to our advanced technology, reliable quality, and exceptional service, Benhe trailer hold a 30% share of the Chinese market and are also exported worldwide. We have successfully sold our products to more than 80 countries, including Ghana, Zimbabwe, Zambia, Tanzania, Sudan, Nigeria, Kenya, Uganda, Mozambique, Namibia, Angola, Botswana, Malawi, Rwanda, Congo, Cote d'Ivoire, Sierra Leone, Senegal, Cameroon, Mali, Mexico, Chile, Ecuador, Saudi Arabia, United Arab Emirates, Uzbekistan, Kazakhstan etc.
FAQ:
Q: What's the main product of Benhe Vehicle?
A: Our main products are bulk cement trailer, lowbed semi trailer, container transport trailer, fence cargo trailer, side wall semi trailer, dump semi trailer, oil tanker trailer, trucks and spare parts.
Q: Does your bulk cement trailer support customization?
A: We have a professional technical team to support the design and customization of various types of semi trailers.
Q: What is your payment method?
A: 30% deposit, 70% balance payment before delivery.
Q: What's the delivery time?
A: Our production time is 15-30 working days.
Q: What is your trailer warranty period?
A: Our trailer chassis warranty period is 3 years, except for man-made damage,free replacement of new parts.
