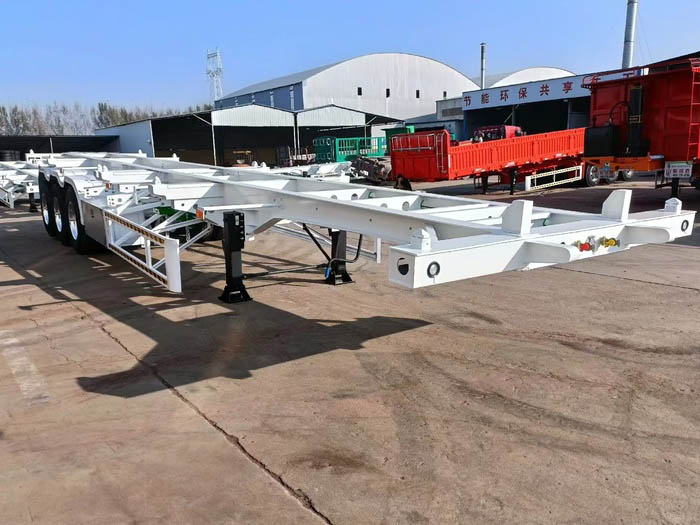

BENHE skeletal container trailer is made of carbon steel Q345, 3 axles leaf spring suspensions, each axle 13 tons, the skeletal container trailer can carrier two 20ft shipping containers or loading one 40ft shipping container.
Benhe skeletal container trailer total length 12.5 meters, width 2.5 meters, equiped with 8 or 12 container twist locks, JOST 28 tons landing gear, JOST brand 2 or 3 inch bolted kingpin, Wabco brake system, this container trailer service life is more than 10 years.
Jinan Benhe Machinery Co., Ltd---BENHE VEHICLE is a leading manufacturer of semi trailers in China, the skeletal container trailer is our advantage product, we have 15 years experience in production and export semi trailers. Benhe vehicle has been successfully exported to 80 countries, received consistent praise from customers, our container trailers can be customized.
Dimension(mm): 12400 x 2500 x 1500 mm
Loading capacity(ton): 60T
Axles: 3 axles
Tire: 8 units, 12.00R22.5 or 315/80R22.5
Rim: 9.00-22.5
Suspension: mechanical suspension
Spring Leaf: 90(W)mm x 13(Thickness)mm x 10 layers
King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)
Landing Gear: JOST brand 28tons (double-speed)

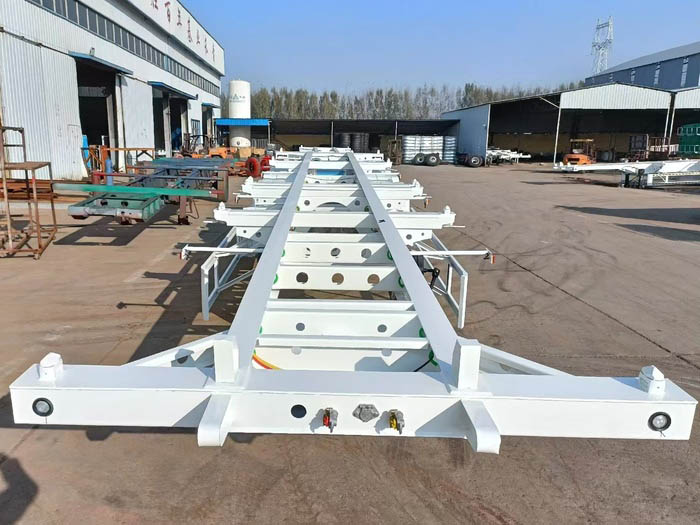

Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel
Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank

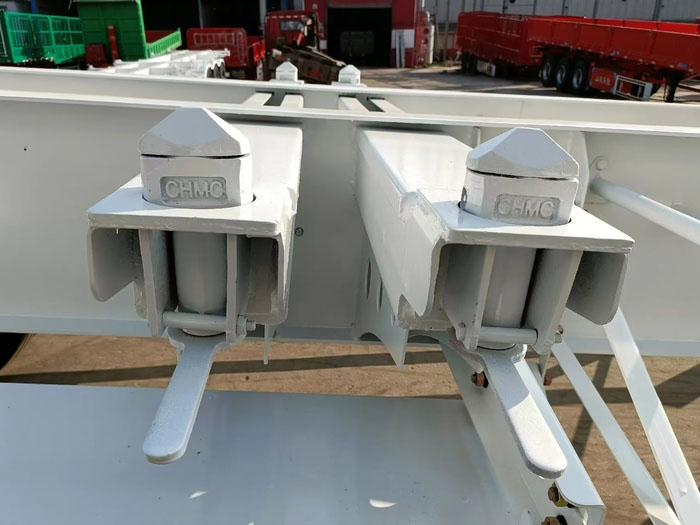

Twist Locks: 4, 8,12 sets (lifting or screw type)
Valve: WABCO valve (specially intended for oversea market)
Light: LED light (specially intended for oversea market)
Voltage: 24V
Socket(Receptacle): 7-pin Socket (for 7 wire harness)
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats

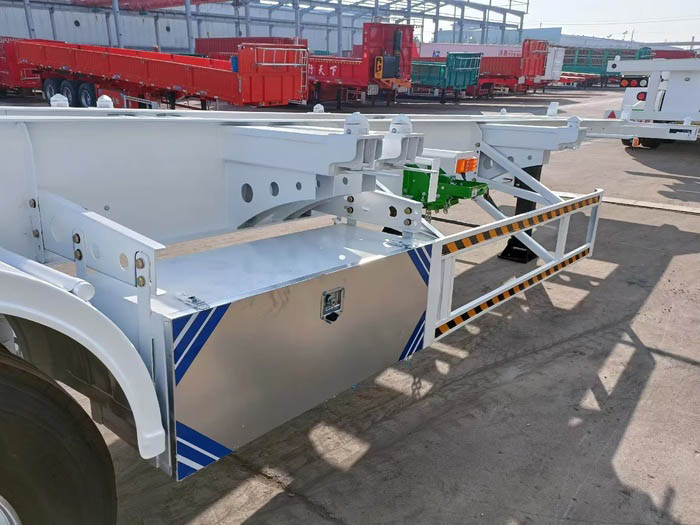

Tool Box: 1m x 0.5m x 0.5m
Skeletal Container Trailer for Sale
40ft Skeletal Container Trailer for Sale
The skeletal container trailer total length 12.5 meters, width 2.5 meters, it has 12 container locks, can load 20ft or 40ft container.
BENHE container trailer is made of Q345B high-strength steel, strong and sturdy, the maximum load can reach 60 tons.
Benhe brand skeletal trailer adopts JOST 28 tons landing gear and Wabco barke systrem, ensuring the trailer with good quality.

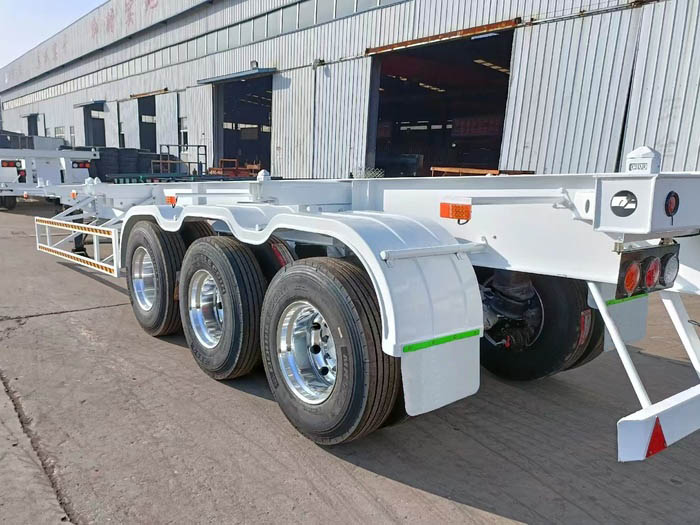

Heavy duty mechanical suspension, equipped with 10 pcs leaf springs, spring thickned 13 or 16mm, and air suspension can also be selected.
200-1000L fuel tank or water tank can be choosed, telescopic skeleton semi trailer can also be customized.
Bulk carrier or Ro-Ro ship, the container chassis trailer is sprayed with wax and covered with waterproof cloth before shipment.
Customers can also choose container shipment, which has low cost and short transportation time.
Q: What are the main products of Jinan Benhe Machinery Co.,Ltd?
A: Our main products are skeletal container trailer, dump trailer, low bed semi trailer, fence semi trailer, side wall semi trailer, duel tanker trailer, cement transport semi trailer, trucks and spare parts.
Q: Where is your factory address?
A: Our factory is located in Liangshan County Industrial Park, Shandong Province, China.
Q: What is your payment method?
A: TT payment, 30% deposit, 70% balance payment before delivery.
Q: How long do you need to finish a trailer?
A: Usually the delivery time within 25-30 days after get 30% deposit.
Q: What's your warranty policy?
A: The vehicle frame is guaranteed for 3 years, excluding wearing parts, under normal use if there is damage to the spare parts, we will provide our customers new spare parts for free.
