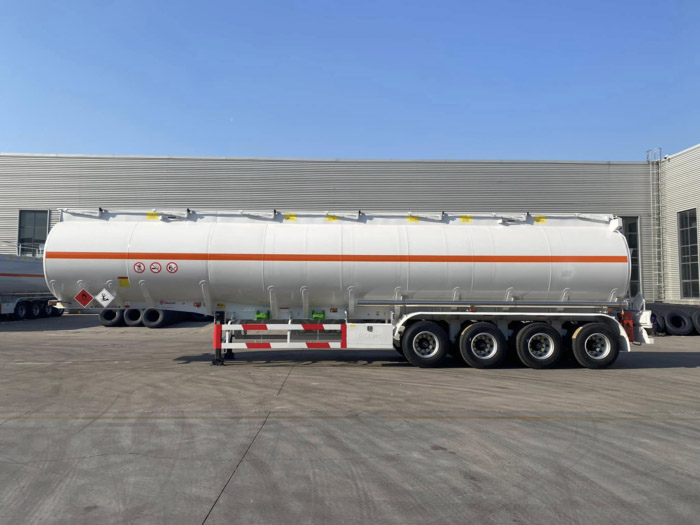

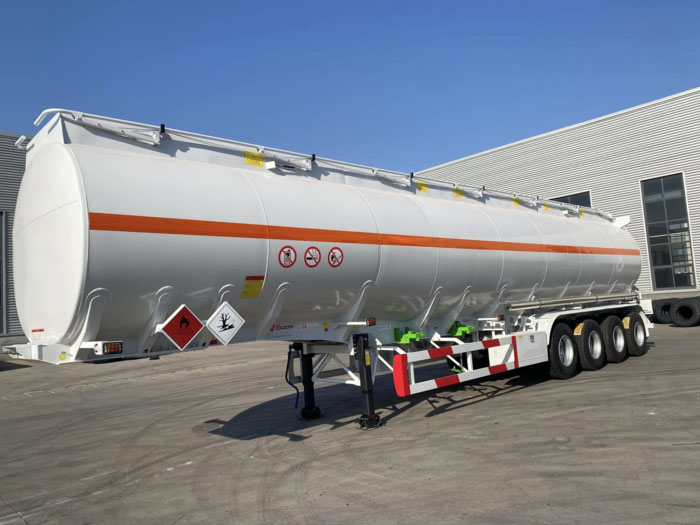

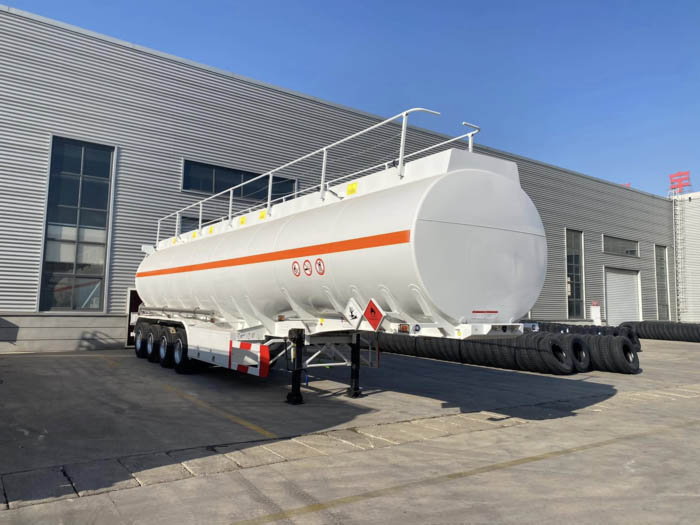

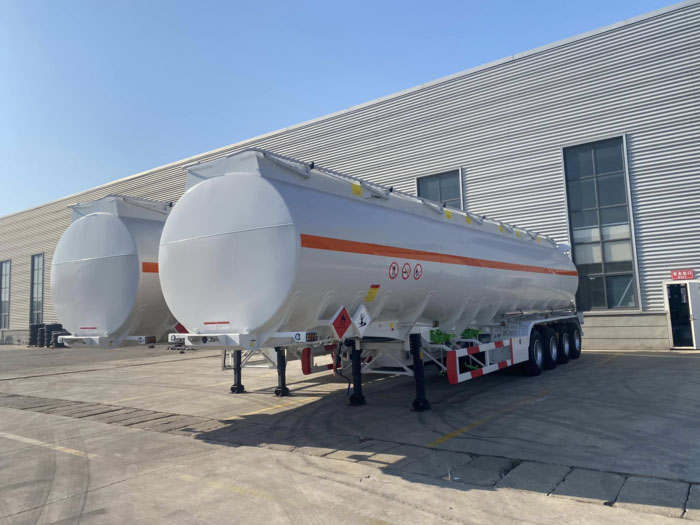

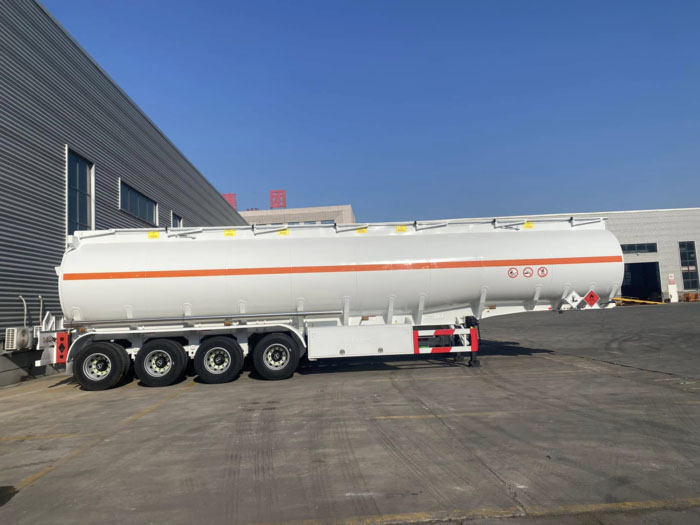

China Benhe Vehcile is a professional manufacturer of tanker trailers, the 4 axles oil tanker trailer capacity can be customized, we can design the 2 axles, 3 axles, 4 axles fuel tanker trailer according to capacity customer need, provide the most economic solutions. This 4 axles fuel tanker is made of carbon steel, we can also provide stainless steel and aluminum tanker, it can transport diesel, gasoline, palm oil, food oil, kerosene, lubricating oil etc.
This 4 axles oil tanker trailer mainly consists of two parts: the tank body and the chassis. The tanker body is constructed from welded carbon steel plates, with both ends sealed by heads and featuring a circular or oval cross-section in the middle. The interior is equipped with baffles and break waver plate, while the top of the tank features anti-slip walkways, manhole covers, and other necessary fittings.
Before providing you with a quote, we'll need to know what liquid medium you're shipping and whether you require a single compartment or multiple compartments. Our engineers will then design the tanker trailer according to your specific needs and send you a detailed quotation.
4 axles oil tanker trailer | |
Manufacturer | JINAN BENHE MACHINERY CO.,LTD |
Dimensions | 13,000 x 2,500 x 3800mm (L X W X H) |
Load capacity | 40,000-70,000 Liters |
Compartment | Customized |
Axle | 13 Tons, 4 axles, 16 tons brake lining |
Suspension | Mechanical suspension, 8mm thickness hanger |
Leaf spring | Eight sets; 13mm (thickness)x90mm (width),10pcs |
Tanker body (Carbon steel) | Barrel: 6.0 mm Anti-wave plate: 6.0 mm Buffle: 6.0 mm Dish end: 7.0 mm |
Manhole cover | 500mm diameter, explosion-proof EURO type |
Subsea valve | Each compartment with one 4'' subsea valve, flange coupling to discharge pipe. |
API | 4" API discharge valves with dust covers |
Discharge valve | Each compartment with one discharge valve |
Emergency valve | Emergency valve at the rear of tanker trailer, can open/close subsea valves. |
Braking system | Dual lines air brake system with “wabco” valve, 30/30 type brake chambers on front two axles, 30 type on rear axle |
Tire Type* NO. | 315/80R22.5 or 12R22.5 & 16 pcs |
Offloading hose | 6m discharge hose |
Landing gear | JOST 28T |

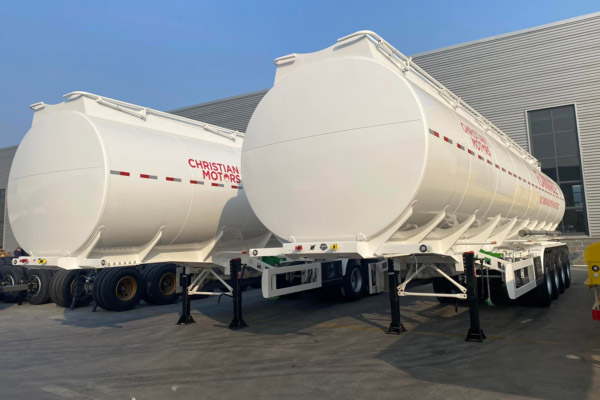

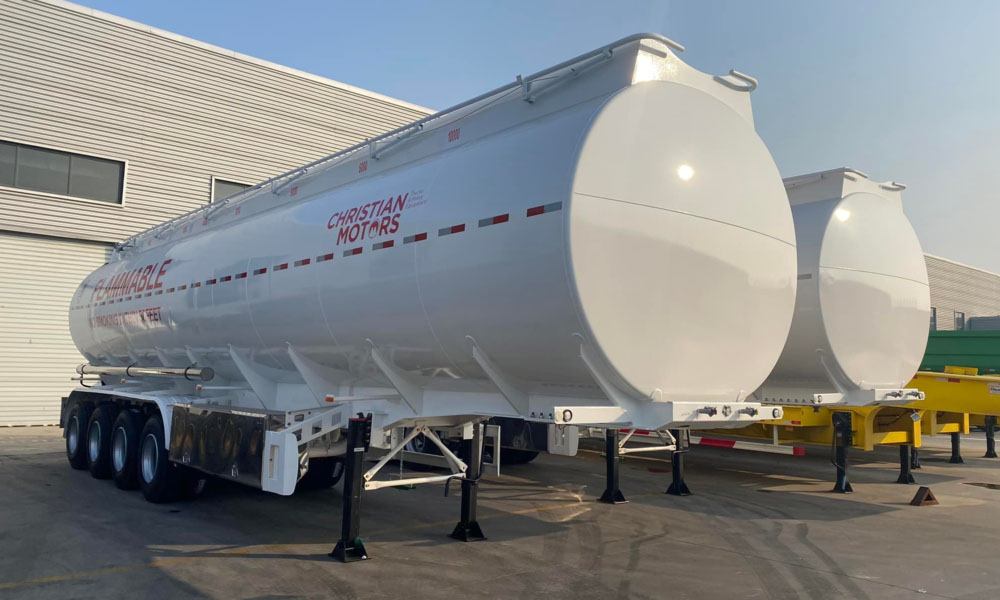

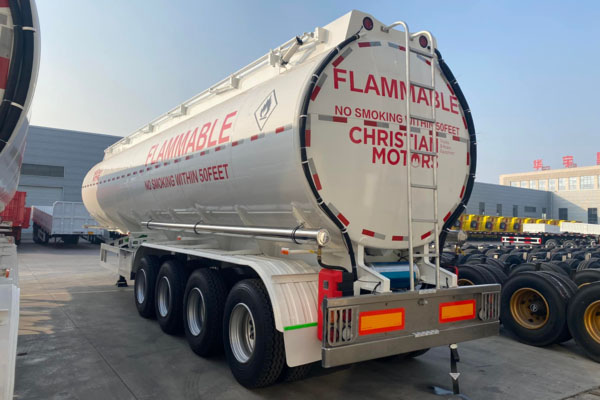

4 axles oil tanker trailer for sale
4 axles fuel tank trailer with cheap price
Break waver plate act as buffer to ease the oil wave force during transportation, makes the trailer more secure.
We will make one layer of bottom painting and two layers of surface painting after sand blasting.The paint is the domestic popular Benteng brand polyurethane paint.
We will provide the trailer spare parts list and some easy broken parts with the oil tanker, such as tail lamp, bush, tighteners, quick couplings that is easier for the customer to replace.
Our fuel tank trailer has API valave, Emergency cut off valve, subsea valve, ABS, it can ensure tanker stable and safe.
The 4 axles oil tanker trailer adopts 28 tons JOST landing gear, easy operation and durable in use.
This fuel tank semi trailer with JOST 2 inches and 3.5 inches bolted kingpin, this tanker trailer is compatible with various brands and models of truck tractors.
Choose the most cost-effective transportation method for customers, Bulk shipment or Ro-Ro shipment.
The crude oil tanker trailer is sprayed with wax before shipment to prevent seawater erosion, and covered with waterproof tarpaulin after loading on board.
Q: Where is your factory located?
A: Our factory is located in Liangshan Town, Jining City, Shandong province, China.
Q: What's your payment terms?
A: 30% deposit by T/T payment, 70% balance should be paid before shipment.
Q: What's the warranty?
A: One-year warranty period, during this period, under normal use if there is damage to the accessories, we will provide new accessories to customers for free.
Q: What's the delivery time?
A: 20 to 25 working days after we received your 30% deposit payment.
Q: If customized service provided?
A: Yes, please contact our sales manger, we can offer customized service on vehicle design/painting/logo, etc.
