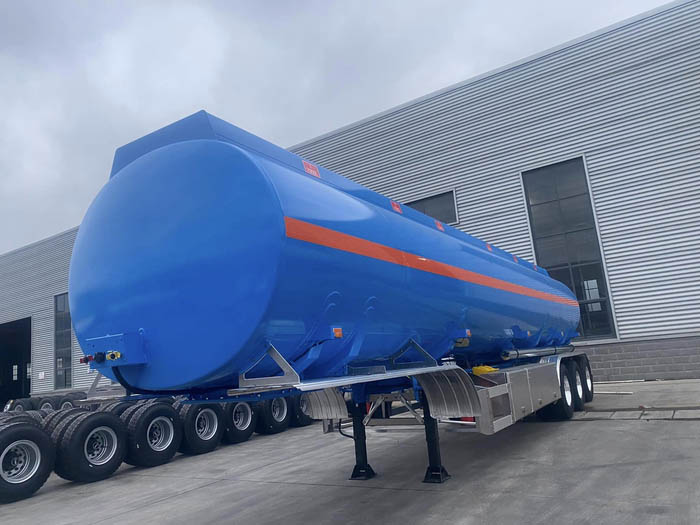

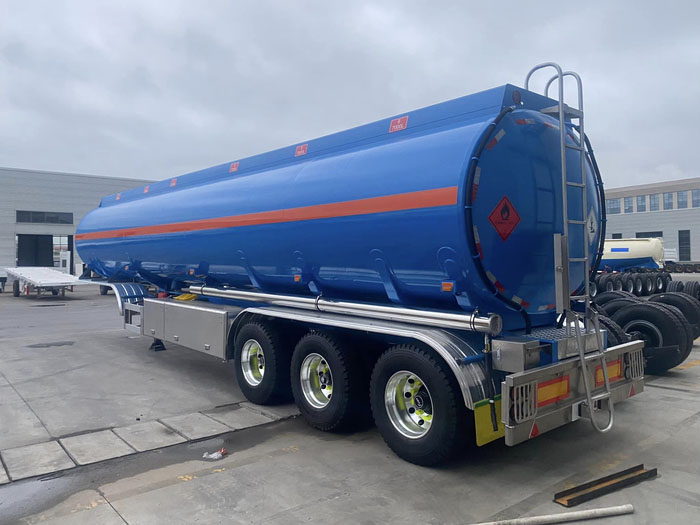

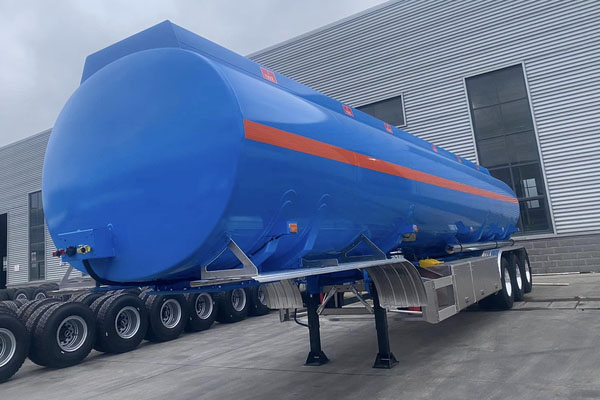

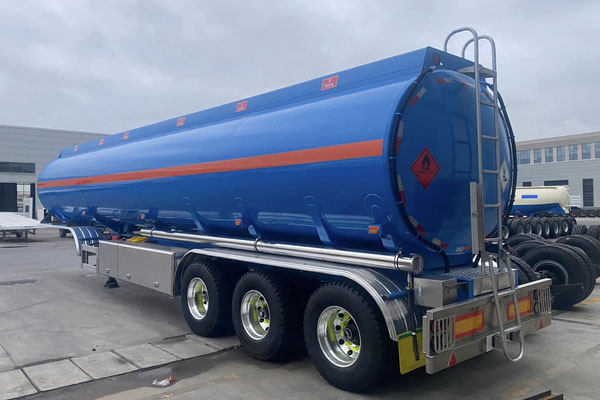

Aluminum tanker trailer with 13T Fuwa axle, 28T landing gear, with a toolbox, a ladder, two spare tire racks, two fire extinguishers, safety bars on both sides and the rear, and a self-flow valve with a small box on each side.
Aluminum alloy is known for its low density and high strength. The side and rear protection of the entire tank are made of aluminum alloy. Aluminum tanker trailer will not rust or oxidize, which helps prevent oil pollution and loss, thereby reducing maintenance frequency. Aluminum tanker trailers exhibit excellent corrosion resistance; their tank bodies can maintain a bright and attractive appearance without the need for any surface treatment. This ease of cleaning further contributes to lower maintenance costs.
Aluminum tanker trailers are lightweight and have a low density. With the same tank body size, an aluminum tanker can carry 15% more cargo than a carbon steel tanker. In addition, due to the reduced weight of aluminum tanker trailers leads to lower fuel consumption and tire wear during transportation, which in turn decreases daily operating expenses and maintenance costs.
Aluminum Tanker Trailer | |
Manufacturer | JINAN BENHE MACHINERY CO.,LTD |
Dimensions | 11800 x 2,500 x 3800mm (L X W X H) |
Load capacity | 42,000 Liters |
Compartment | 5 compartments |
Axle | 13 Tons, 3 axles, 16 tons brake lining |
Aluminum alloy material | 5182 model |
Leaf spring | Six sets; 13mm (thickness)x90mm (width),10pcs |
Tanker body (Aluminum Alloy 5182) | Barrel: 5.0 mm Anti-wave plate: 5.0 mm Buffle: 5.0 mm Dish end: 6.0 mm |
Manhole cover | 500mm diameter, explosion-proof EURO type |
Subsea valve | Each compartment with one 4'' subsea valve, flange coupling to discharge pipe. |
API | 4" API discharge valves with dust covers |
Discharge valve | 5 pcs |
Emergency valve | Emergency valve at the rear of palm oil tanker trailer, open/close subsea valves. |
Braking system | Dual lines air brake system with “wabco” valve, 30/30 type brake chambers on front two axles, 30 type on rear axle |
Tire Type* NO. | 12R22.5 & 12 pcs |
Offloading hose | 6m discharge hose |
Landing gear | JOST 28T |

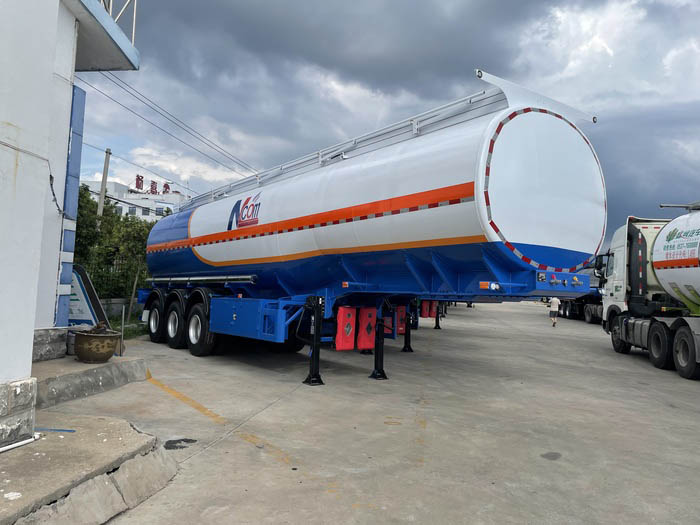

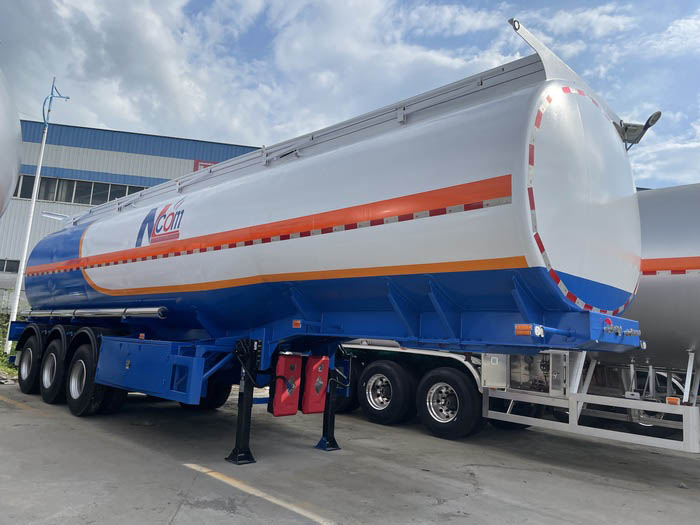

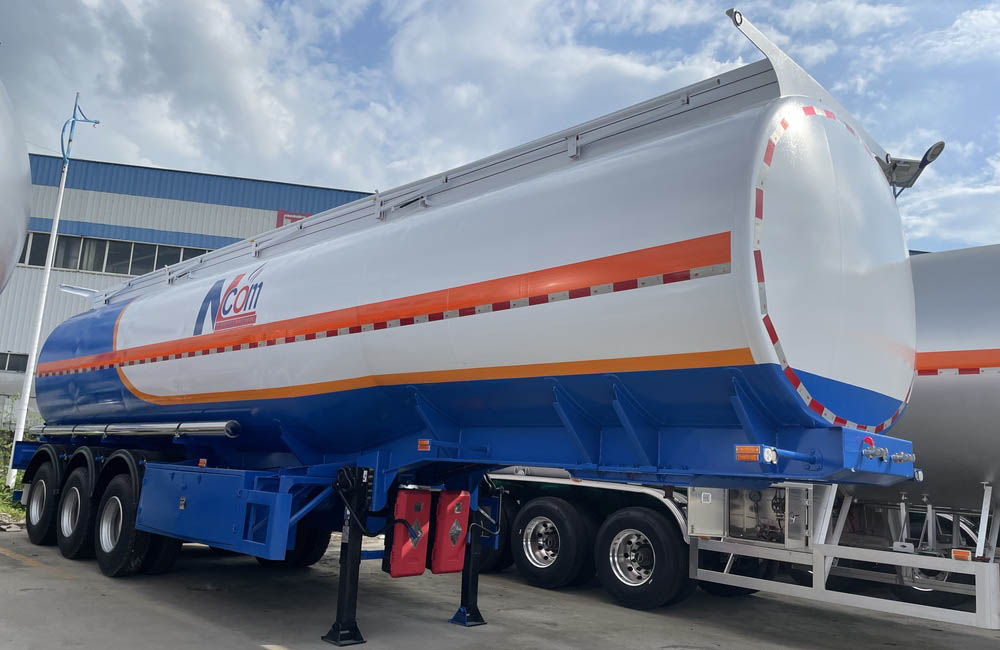

Aluminum Tanker Trailer for Sale
Aluminum Tanker Trailer for Sale in Africa
The purpose of the landing gear is to support the aluminum tanker trailer when it is parked and disconnected from the tractor. To accommodate changes in the height of the aluminum tanker trailer, the legs are equipped with a screw lifting mechanism, ensuring that the connection and disconnection between the aluminum tanker trailer and the tractor can be performed smoothly.
The modular rear bumper is engineered to withstand impacts of up to 10 tons, offering exceptional safety performance to protect the tank from damage.
Valves that comply with ADR standards are widely used by major oil companies, and their high quality guarantees a longer service life.
The cable and pipe routing and clamping system provides improved access for diagnostic testing and replacement.
The anti-spill sensor is crucial during the loading of liquid fuel, as it enables real-time monitoring of the amount being added. To prevent overflow, we employ an overflow prevention sensor that activates an alarm when the liquid reaches a predetermined height.
The oil and gas recovery valve is crucial during loading and unloading operations. This valve efficiently recovers excess volatile oil and gas, reducing waste and improving safety.
The safety valve is a critical component of the manhole cover. This valve automatically regulates the internal pressure of the tank, ensuring its safety while also minimizing the volatilization of oil.
Waterproof wax is sprayed before the aluminum tanker trailer leaving factory, and covered with waterproof rain cloth.

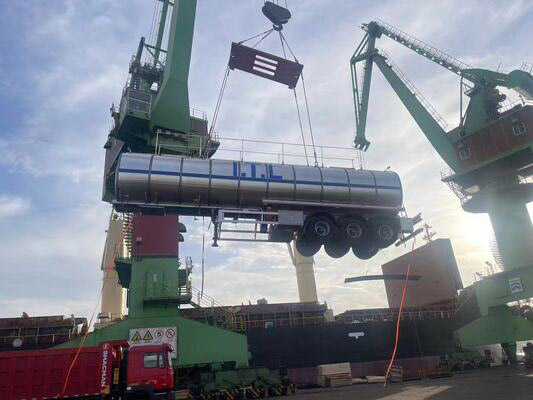

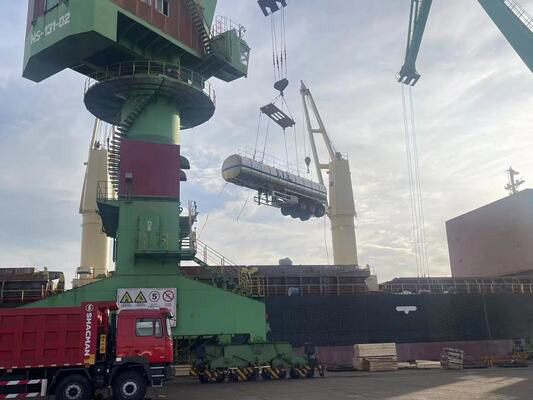

Choose the most cost-effective transportation method for customers, Bulk shipment or Ro-Ro shipment.
Q: What is your payment method?
A: 30% deposit TT payment, rest balance paid before shipping.
Q: Aluminum tanker trailer production time?
A: Usually we produce the aluminum tanker within 20-25 days after get 30% deposit.
Q: What's your warranty policy?
A: The aluminum tanker trailer frame is guaranteed for 3 years, excluding wearing parts, under normal use if there is damage to the spare parts, we will provide our customers new spare parts with free.
Q: How do you transport the aluminum tanker trailer?
A: We transport the trailer by RO-RO ship, bulk cargo ship or even 45HQ container. Our factory possesses long-term cooperation with ship agency which can provide you lowest shipping price.
Q: What are your main products?
A: We can provide and supply your various trailers such as heavy-duty low bed truck trailer, flatbed container semi trailers, skeleton container semi trailer, side wall semi trailer, cargo box semi trailer, dump trailers, bulk cement tank trailer, fuel tank semi trailer, stainless steel tank semi trailer, aluminum alloy tank semi trailer, car carrier semi trailer, full trailer, super-link trailer, trucks, spare parts, and can be manufactured as special design.
