The 80 ton drop side trailer mainly transport vegetables, fruits, grains, bagged cement, and other bulk goods. It has a 3-axle heavy-duty mechanical suspension and load capacity of up to 80 tons. The drop side trailer is made of high-strength steel and is equipped with a reinforced sidewall design, which not only ensures load stability but also facilitates the efficient loading and unloading of goods.
BENHE 80 ton drop side trailer frame has been optimized for lightweight construction and torsional resistance, effectively reducing fuel consumption while ensuring load-bearing strength. The side wall height is usually 0.8-1.2 meters, which can be disassembled or folded. Container locks can be installed to transport 20-foot or 40-foot containers.
Drop side trailers are custom-built products tailored to meet customers' specific load capacity and size requirements. We offer:
2-axle drop side trailer for 40-ton loads
3-axle drop side trailer for 60-80-ton loads
4-axle drop side trailer for 80-100-ton loads
5-axle drop side trailer for 120-ton loads
Our drop side trailers have been exported to over 80 countries worldwide, including Tanzania, Zambia, Zimbabwe, Ghana, Nigeria, Senegal, Saudi Arabia, the UAE, Mexico, Peru, Chile, and more.
We welcome your inquiries and look forward to delivering our high-quality products and exceptional service to your business.
Dimensions | 12,500 x 2,500mm (L X W) |
Load capacity | 80 Tons (customized) |
Side boards | 800-1200mm height (customized) |
Axle | 13 Tons, 3 axles (FUWA / BPW optional) |
Main Beam | Main beam height: 500mm Upper plate: 18mm ；Middle plate: 10mm Down plate: 20mm |
Side Beam | 160mm Channel Steel |
Bottom Plate | 3.0mm checkered plate |
Suspension | Heavy duty mechanical suspension |
Leaf Spring | 90(W)mm x 16(Thickness)mm x 10 layers, 6 Sets |
Kingpin | JOST brand, 2.0 or 3.5inch (bolted or welded type) |
Landing Gear | JOST brand, 28 Tons |
Braking system | WABCO Emergency relay valve |
| Container Twist Lock | 12 pcs (Optional) |
Tire Type & Size * NO. | 12R22.5, 12 pcs |
Rim Size * NO. | 9.00*22.5, 12 pcs |

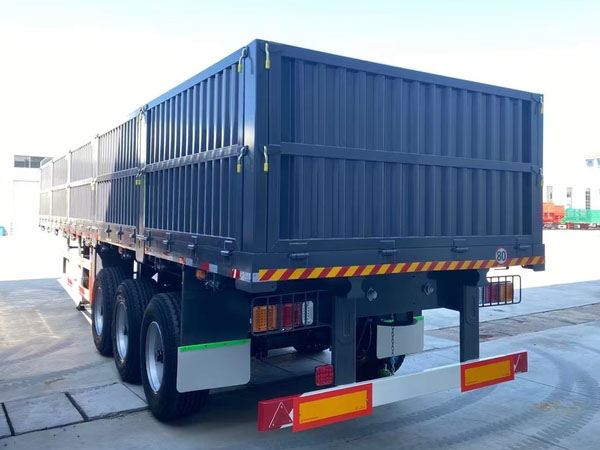

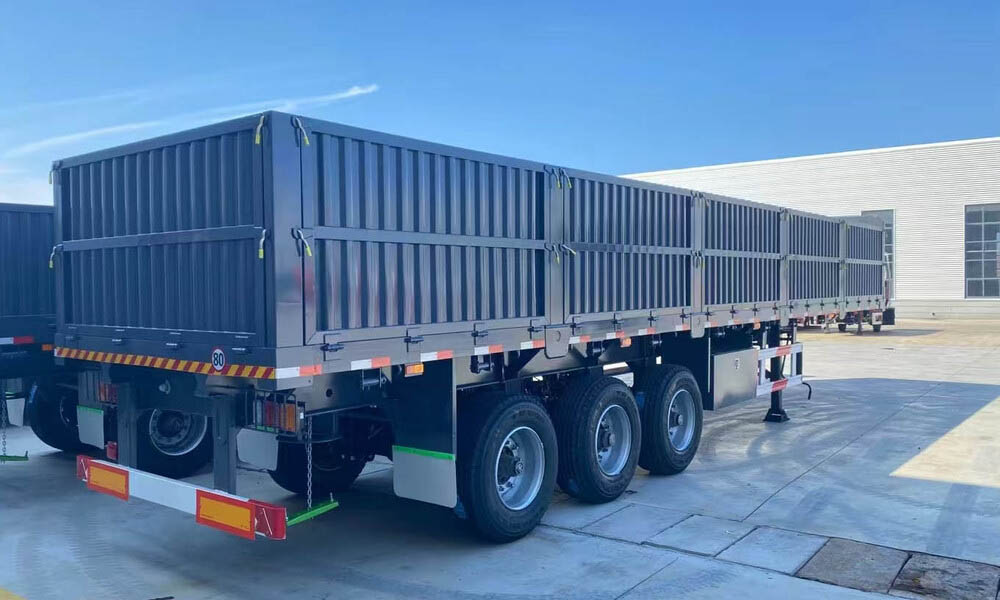

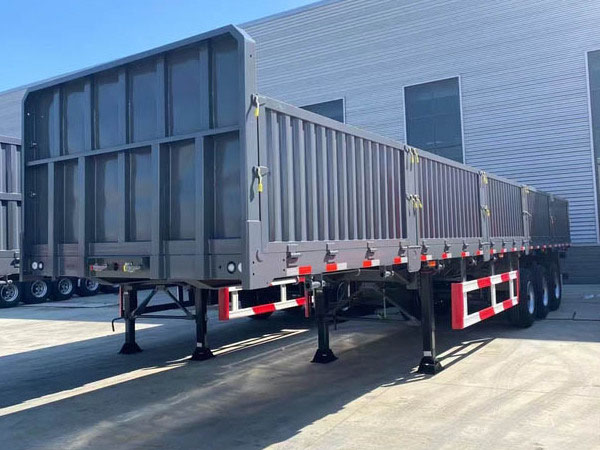

80 Ton Drop Side Trailer from China
80 Ton Drop Side Trailer for Sale
Heavy-Duty Capacity:
BENHE 80 ton drop side trailer is constructed with Q460 high-strength steel (yield strength ≥460MPa), featuring reinforced longitudinal beams and an 8mm thickened mechanical suspension to ensure a payload capacity of up to 80 tons.
Removable Side Boards:
All four sides boards can be detached or folded down without tools. Single-side board folding takes <2 minutes, enabling efficient loading/unloading from both sides or the rear.
Reinforced Frame:
The 80 ton side wall trailer uses high-strength steel longitudinal beams + reinforced welding technology, improving torsion and compression resistance by over 30% for long-term durability under heavy loads.
High Compatibility:
Designed to pair with various tractor heads, this dropside trailer adapts flexibly to diverse transport scenarios.
Optimized Braking System:
The sidewall trailer equipped with dual-circuit pneumatic brakes and ABS to keep reliable braking performance under heavy loads.
Low Maintenance Costs:
Simple structure, highly interchangeable components, and easy repairs reduce downtime and operational expenses.
Waterproof wax is sprayed before leaving the factory, and covered with waterproof rain cloth.
Choose the most cost-effective transportation method for customers based on the number of required by customers. There are generally 3 units side wall semi trailers as a stack for shipment, ,bulk shipment, Ro-Ro shipment, container shipment.
Q: What's your payment terms?
A: T/T: 30% deposit by T/T,70% balance should be paid before shipment.
Q: How long it will take for an order to be delivered?
A: 30 working days after we received your 30% prepayment, the specific delivery time depends on the items and the quantity of your order.
Q: Where is your factory located?
A: Our factory is located in Jinan City, Shandong province, China.
Q: How about the warranty?
A: Our company promise a one-year warranty period, during this period, under normal use if there is damage to the accessories, we will provide our customers with free new accessories.
Q: What is your terms of shipment?
A: Generally, we ship the tractor truck by ro-ro ship , bulk cargo vessel or flat rack.
