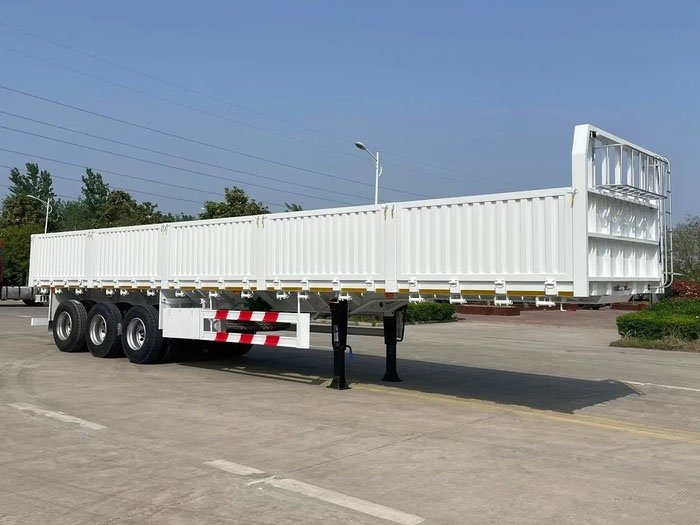

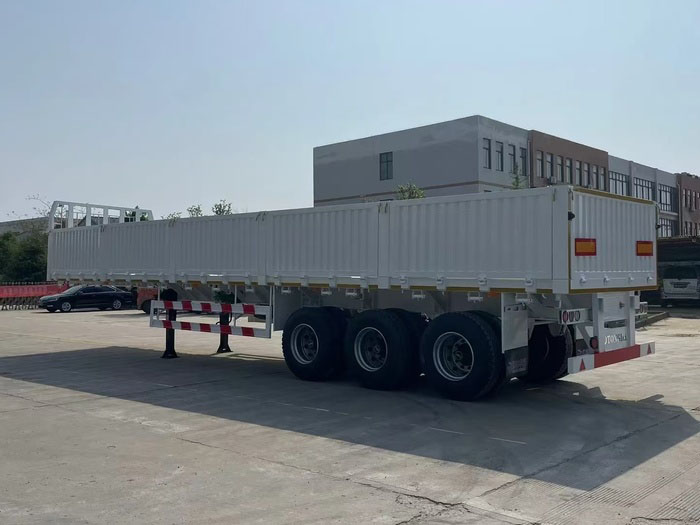

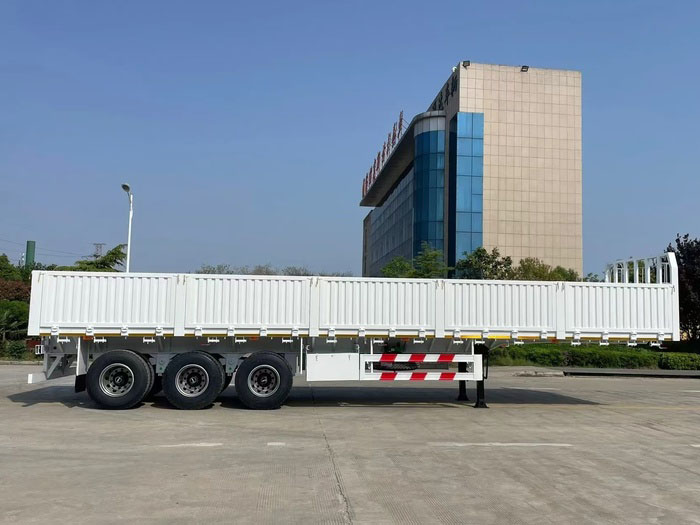

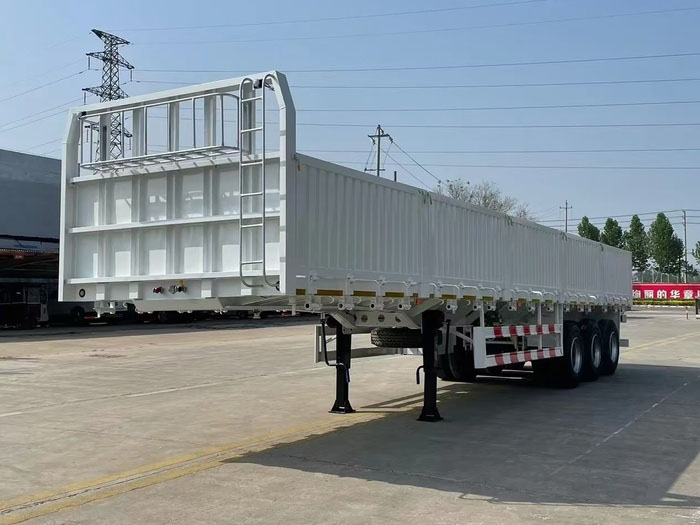

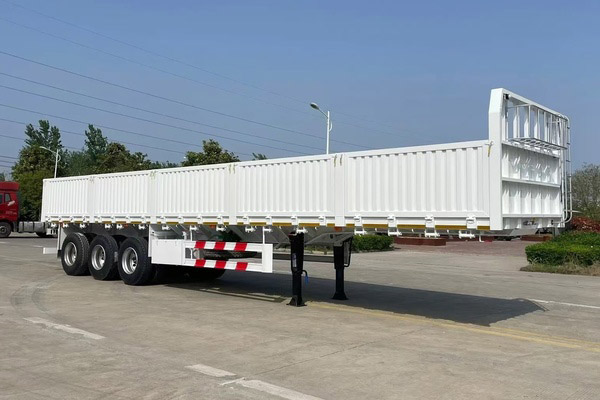

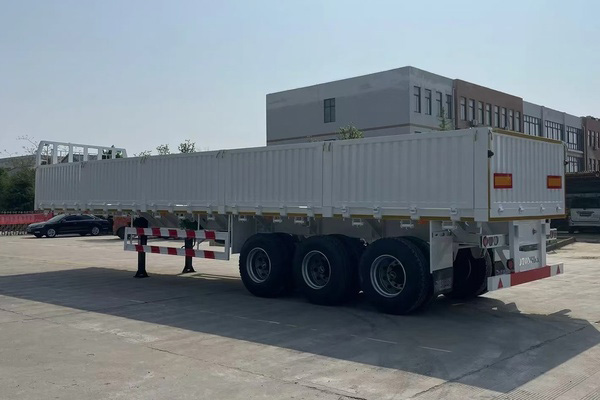

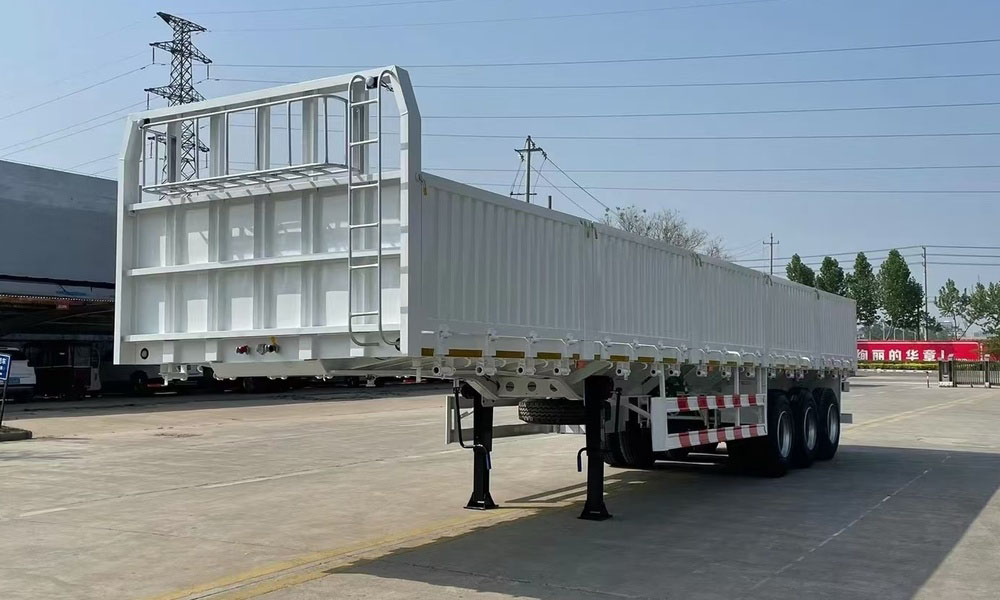

China removable side wall cargo trailer is a common freight vehicle, designed with removable side and rear walls for easy loading and unloading. The removable side wall cargo trailer is widely used for transporting bulk cargo such as construction materials, agricultural products, and containers. The removable side panels enhance both cargo security and loading efficiency while offering customizable height options to meet diverse transportation needs.
The removable side wall cargo trailer is made of high-strength carbon steel Q345, the drop side trailer features a robust chassis and excellent load-bearing capacity, making it suitable for both short-haul and long-distance logistics. This side wall trailer is highly favored in industries like logistics, construction, and agriculture.
China removable side wall cargo trailer is customized product, the load capacity can dimensions can be customized according to customer needs.
BENHE VEHICLE sidel wall trailer has been exported to over 80 countries worldwide, including Tanzania, Zambia, Zimbabwe, Ghana, Nigeria, Senegal, Saudi Arabia, the UAE, Mexico, Peru, Chile, and more.
We welcome your inquiries and look forward to delivering our high-quality products and exceptional service to your business.
Dimensions | 12,500 x 2,500 x 2,400mm (customized) |
Load capacity | 60 Tons (customized) |
Side boards | 800-1200mm height (customized) |
Axle | 13 Tons, 3 axles |
Main Beam | Q345B, main beam height: 500mm |
Side Beam | 160mm Channel Steel |
Bottom Plate | 3.0mm checkered plate |
Suspension | Heavy duty mechanical suspension |
Leaf Spring | 90(W)mm x 13(Thickness)mm x 10 layers, 6 Sets |
Kingpin | JOST brand, 2.0 or 3.5inch (bolted or welded type) |
Landing Gear | JOST brand, 28 Tons |
Braking system | WABCO Emergency relay valve |
| Container Twist Lock | 12 pcs (Optional) |
Tire Type & Size * NO. | 12R22.5, 12 pcs |
Rim Size * NO. | 9.00*22.5, 12 pcs |
China removable side wall cargo trailer price
Removable side wall cargo trailer manufacturer
Removable Side Wall: All four sides panel can be quickly detached or folded down, facilitating loading/unloading via forklifts or cranes, while also accommodating manual handling of bulk cargo.
Adjustable Height: Standard side wall height range from 0.8 to 1.2 meters, it can be customized based on cargo type.
Durable Material: The main structure of side wall trailer uses high-strength carbon steel with anti-rust spray coating and baked paint for enhanced durability and corrosion resistance.
Reinforced Design: the side wall cargo trailer with 3mm thickened floor, and crossbeams spaced ≤50 cm apart to ensure impact resistance during transit.
Cost-Efficient: Lightweight, high-capacity, the 3 axles removable side wall cargo trailer can carry up to 60 tons, with lower fuel consumption. Compared to flatbed trailer, the side panels can protect cargo from slipping off the vehicle.
Custom dimensions: the dropside trailer standard length is 8–15 meters, width 2.5 meters. Extended versions are available to meet specific hauling requirements.

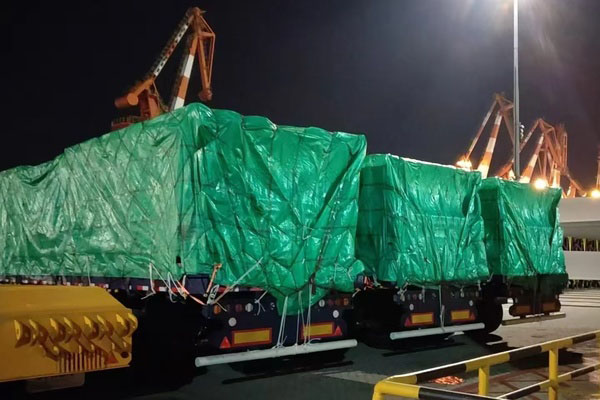

Waterproof wax is sprayed before leaving the factory, and covered with waterproof rain cloth.

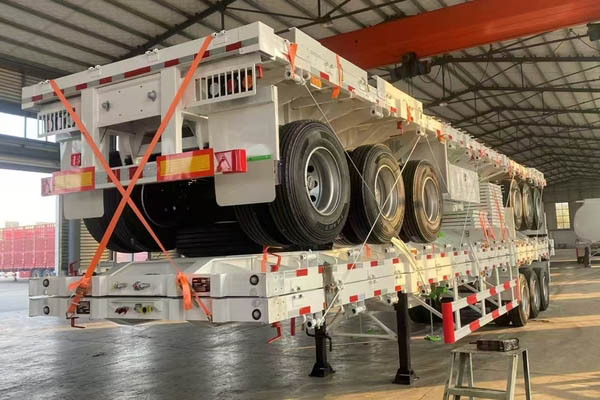

Choose the most cost-effective transportation method for customers based on the number of required by customers. There are generally 3 units side wall semi trailers as a stack for shipment, ,bulk shipment, Ro-Ro shipment, container shipment.
Q: What's your payment terms?
A: T/T: 30% deposit by T/T,70% balance should be paid before shipment.
Q: How long it will take for an order to be delivered?
A: 30 working days after we received your 30% prepayment, the specific delivery time depends on the items and the quantity of your order.
Q: Where is your factory located?
A: Our factory is located in Jinan City, Shandong province, China.
Q: How about the warranty?
A: Our company promise a one-year warranty period, during this period, under normal use if there is damage to the accessories, we will provide our customers with free new accessories.
Q: What is your terms of shipment?
A: Generally, we ship the tractor truck by ro-ro ship , bulk cargo vessel or flat rack.
