One Line Two Axles Lowbed Trailer Will Be Sent To Bhutan

What is an Axle-Line Lowbed Semi-Trailer? An axle-line semi-trailer refers to a trailer configuration where two axles are mounted on a single central axis line—meaning two smaller axles are positioned side by side on one axis. Common lowbed semi-trailers of this type come with 2 to 7 axle lines. Each axle is fitted with 4 tires, so one axle line is equipped with a total of 8 tires. These lowbed semi-trailers typically have a width of over 3.3 meters, making them suitable for transporting oversized cargo. To lower the overall center of gravity of the vehicle, they usually adopt small-diameter steel radial tires with high load-bearing capacity.

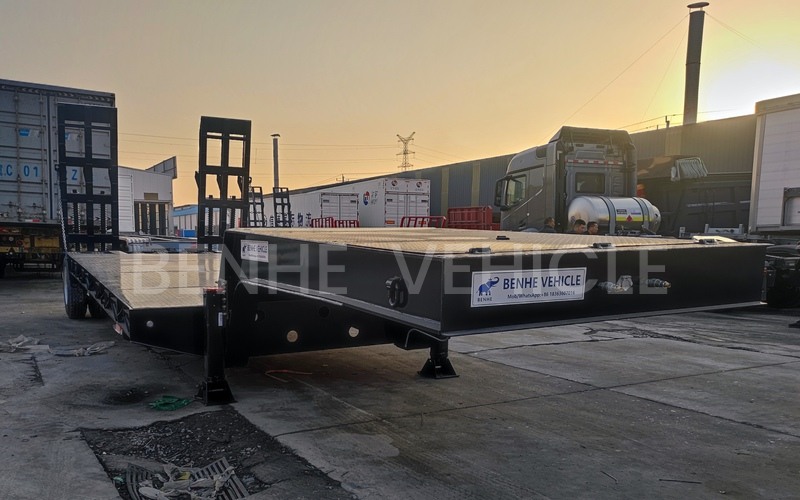

We have just delivered to our Bhutanese client is exactly a lowbed semi-trailer designed with one line two axles configuration, built to meet the client's required load capacity of 40 tons. The client placed the order in October 2025, main to transport construction machinery such as excavators and road rollers. After gaining a thorough understanding of the client's specific needs, our sales manager Mr. Jason provided a detailed quotation with technical drawings. The client confirmed the order shortly afterward. Currently, the one line two axles lowbed trailer has successfully passed production and quality inspection, ready to ship.

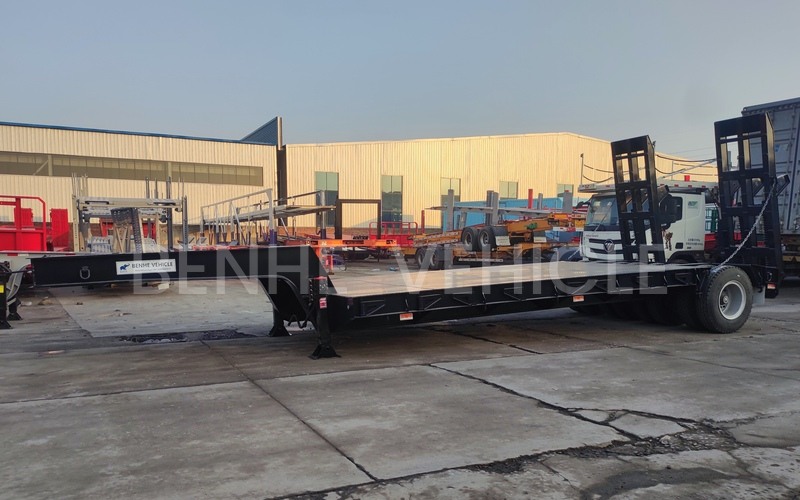

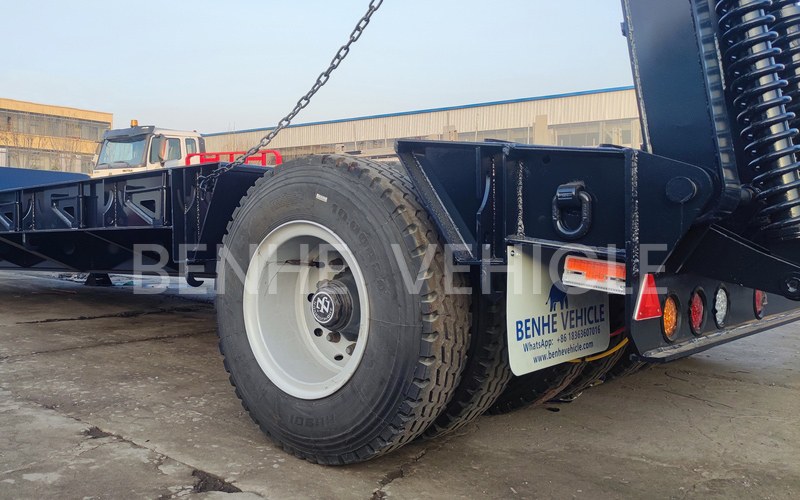

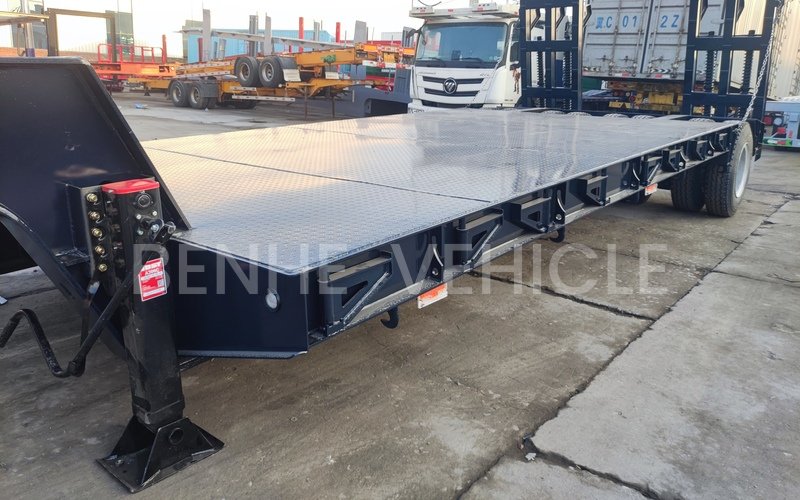

The single line two axles lowbed semi trailer ordered by the Bhutanese client is fitted with 10R20 tires. Its frame is constructed using high-strength T700 steel, ensuring that the main beam does not deform or fracture even under various complex road conditions. Compared with traditional lowbed semi-trailers, the loading platform height of this single-axis-line dual-axle model is significantly reduced, usually standing only 0.8 to 1.2 meters above the ground. By lowering the loading surface, the overall center of gravity of the vehicle is markedly decreased, which greatly enhances driving stability when transporting large-scale construction machinery and engineering components.

Advantages of One Line Two Axles Design

Superior Stability

With two axles placed side by side on a single axis line, the vehicle boasts enhanced stability during operation. Especially when driving at high speeds or making turns, lateral sway is reduced by 30% to 40%, which significantly lowers the risk of rollover and improves overall safety.

High Load-Bearing Capacity

The dual-axle configuration substantially boosts the vehicle's load-bearing capacity, making it ideal for hauling heavy-duty cargo.

Wide Adaptability

The one line two axles lowbed trailer can adapt to diverse road conditions and transportation requirements, delivering strong practicality.

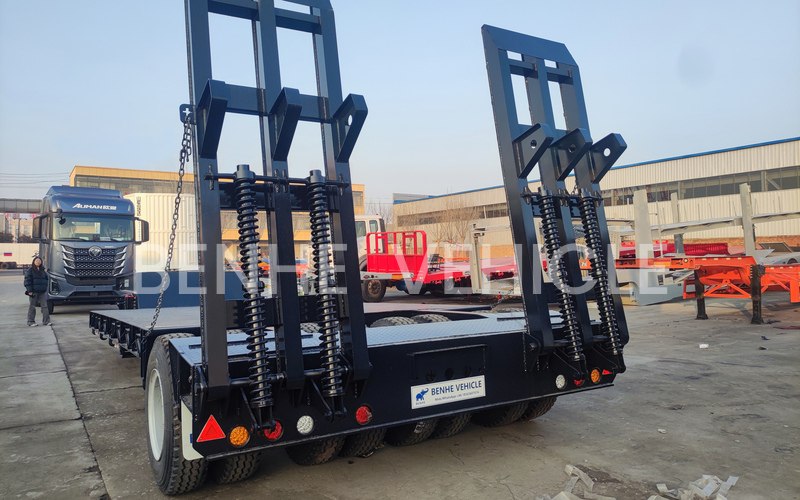

The transportation of large construction machinery such as excavators, road rollers, and cranes is inseparable from lowbed semi-trailers. The tail of these lowbed is equipped with two heavy-duty mechanical ramps, allowing equipment to drive onto or off the trailer under its own power or be lifted by cranes, which greatly improves operational efficiency.

Beyond the Asian market, we have also achieved outstanding results in Africa. As an emerging market for engineering and construction, Africa has seen a sustained and robust demand for lowbed semi-trailers. In 2025 alone, Jinan Benhe Machinery Co., Ltd. (Benhe Vehicle) has exported more than 200 lowbed semi trailers to the African market. If you are also interested in axle line lowbed trailer, please feel free to contact us at any time.
