Side tipper trailer mainly used for the transportation of bulk goods such as coal, ore, grain, etc. Its biggest feature is that the carriage can flip over, making it easy to unload quickly and improving efficiency. The side tipping trailer with big load capacity, it allows goods to be unloaded from the side, side dump trailer with different shapes, and the diemsnions and load capcity can be customized according to customer requirements.
Structural composition:
Side dump trailer chassis: tires, axles, leaf spring or air suspensions, main beam, complete electrical circuit ,brake system and LED light.
Cargo box: Used for loading goods, mostly made of high-strength steel to ensure durability.
Hydraulic system: controls the rollover of the carriage, usually consisting of hydraulic cylinders, pump stations, and pipelines.
Manufacturer | 40 Tons |
Dimensions | 10000*2500*2600 mm |
Cargo box dimensions | 9500*2400*1000 mm |
Loading capacity | 40 Tons |
Axle | 13 Tons, 3 axles, factory configuration (FUWA / BPW optional) |
Main Beam | Q345 Manganese Steel Main beam height: 500mm Upper plate: 14mm ；Middle plate: 8mm Down plate: 16mm |
Side Plate | 3.0mm |
Bottom Plate | 6.0mm |
Suspension | Heavy duty mechanical suspension |
Leaf Spring | 90(W)mm x 13(Thickness)mm x 10 layers, 6 Sets |
Kingpin | JOST brand, 2.0 or 3.5inch (bolted or welded type) |
Landing Gear | 28 Tons |
Braking system | WABCO Emergency relay valve |
Tire Type & Size * NO. | 12R22.5 & 12 pcs |

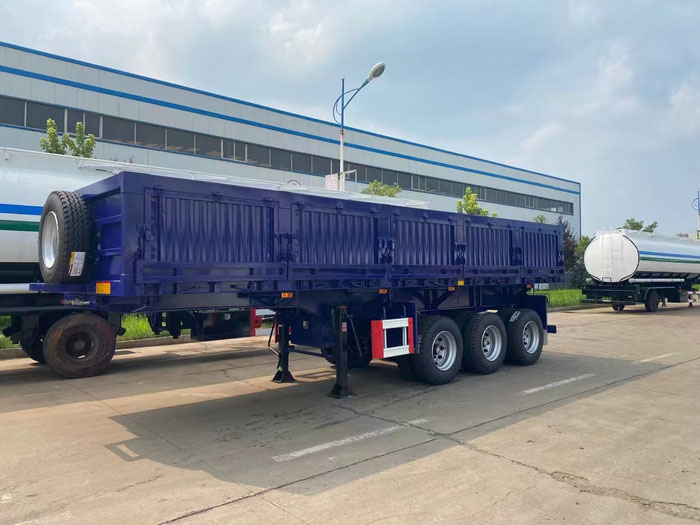

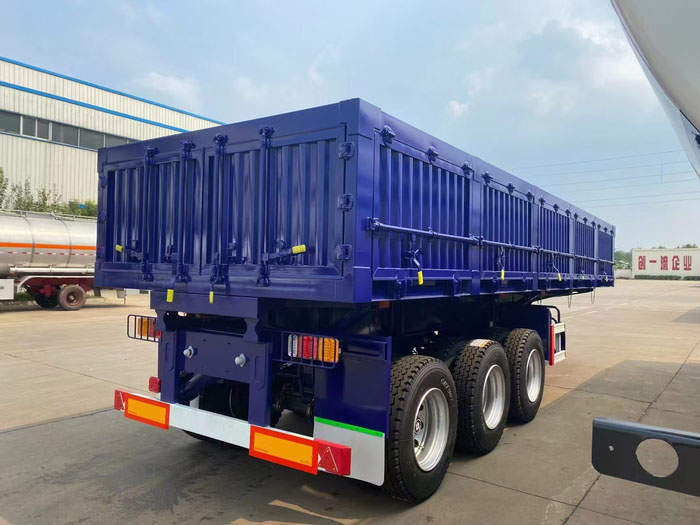

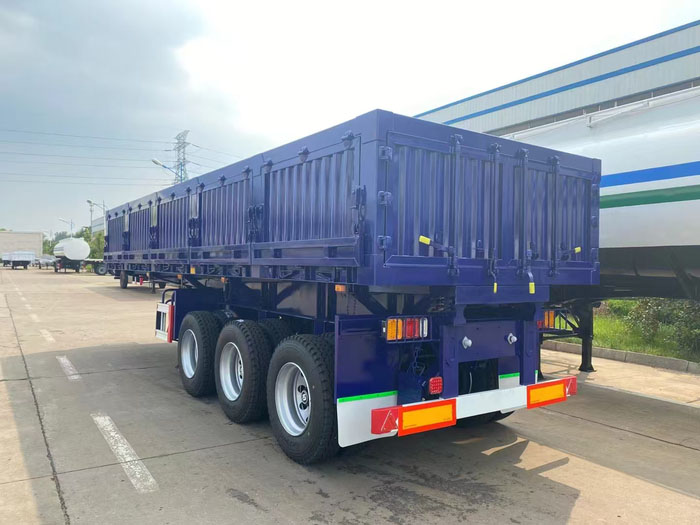

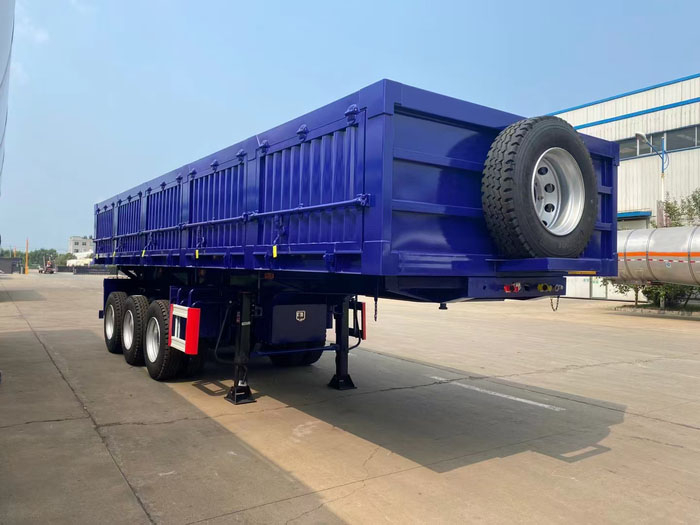

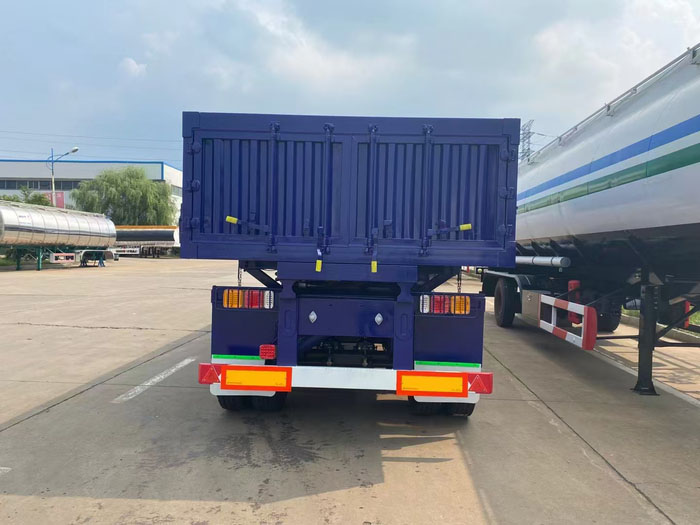

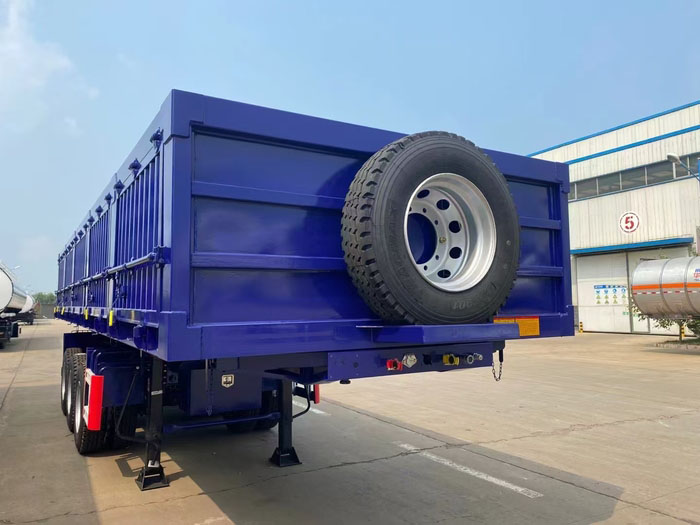

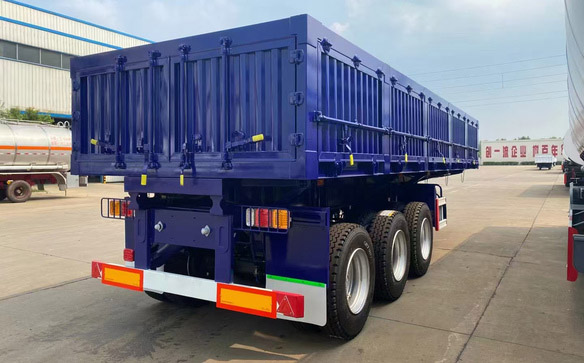

Tri axle Side Dump Trailer for Africa Market

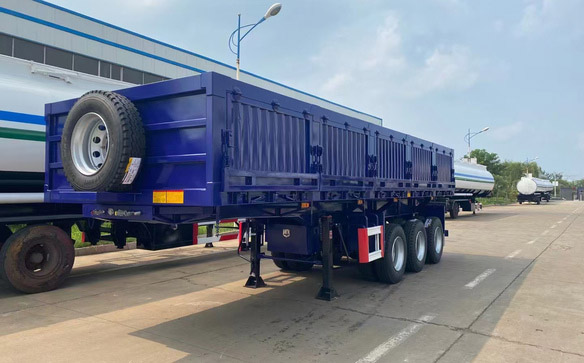

40 Tons Side Tipper trailer for sale
Efficient unloading: The flip design significantly reduces unloading time.
Widely applicable: suitable for transporting various bulk goods.
Easy to operate: The hydraulic system makes unloading operations convenient.
Sturdy structure: High strength materials ensure vehicle durability.
Side dump trailer application:
Mining: transporting coal, ore, etc.
Agriculture: transporting food, feed, etc.
Construction industry: transportation of sand, gravel, cement, etc.
Due to its efficient unloading capacity and broad range of applications, the side-tipping trailer has become an essential tool for bulk cargo transportation, particularly in the mining, agriculture, and construction industries.

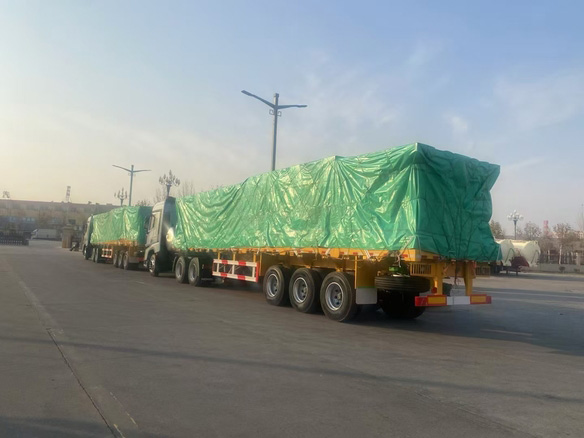

1. Waterproof wax is sprayed before leaving the factory, and the side tipper trailer covered with waterproof rain cloth.

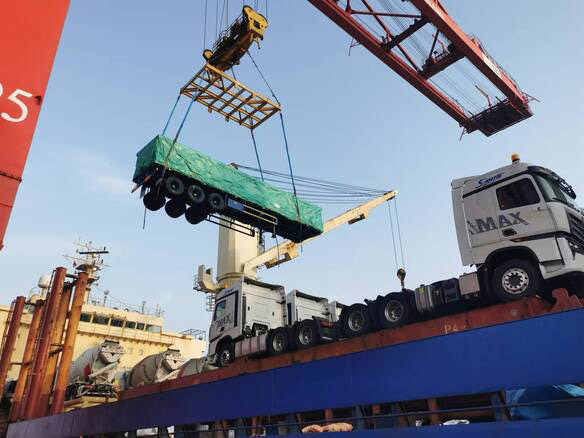

2. Choose the most cost-effective transportation method for customers, bulk shipment, Ro-Ro shipment, container shipment.
What's your whole order process? If you order, check below order process:
1), Confirm the Specification & Price.
2), Confirm order. We will send you Proforma Invoice, you can sign on it and resend back to us. (By Scan, or even just taking clear pictures if you cannot scan).
3), You arrange 30% deposit by Bank T/T (Telegraphic Transfer), and send the bank slip copy back to us.
4), We send final official drawing to you, and after deposit arrive (normally about 3 days for international transfer), we arrange manufacture schedule immediately.
5), We update you the manufacture process in time.
6), After finished manufacture, will send you details pictures / videos to you confirm.
7), You arrange the rest 70% balance to us by bank T/T (normally about 3 days for international transfer).
8), After confirm your balance arrived, we will arrange ocean shipping to your destination sea port. (Also, we will buy Insurance for your products shipping, in case any bad things happen during ocean shipping).
9), Before issue the final original B/L (Bill of Lading), we will send you draft to confirm in advance.
10), After shipping company issued the Original B/L (also, our company will issue the Packing List, Commercial Invoice), then we will use DHL (FedEx or TNT) courier to your details address (your home /office address, or even your Customs Clearance agent address all okay).
11), After you get the original files, you can work with your local customs clearance agent together, to get the products from the sea port.
12), After you get the products in hand, then everything is done!
Welcome to inquiry if you have anything need help.
See? Working with us is the most easily job in the world. Let's wishing your business doing better and better!
