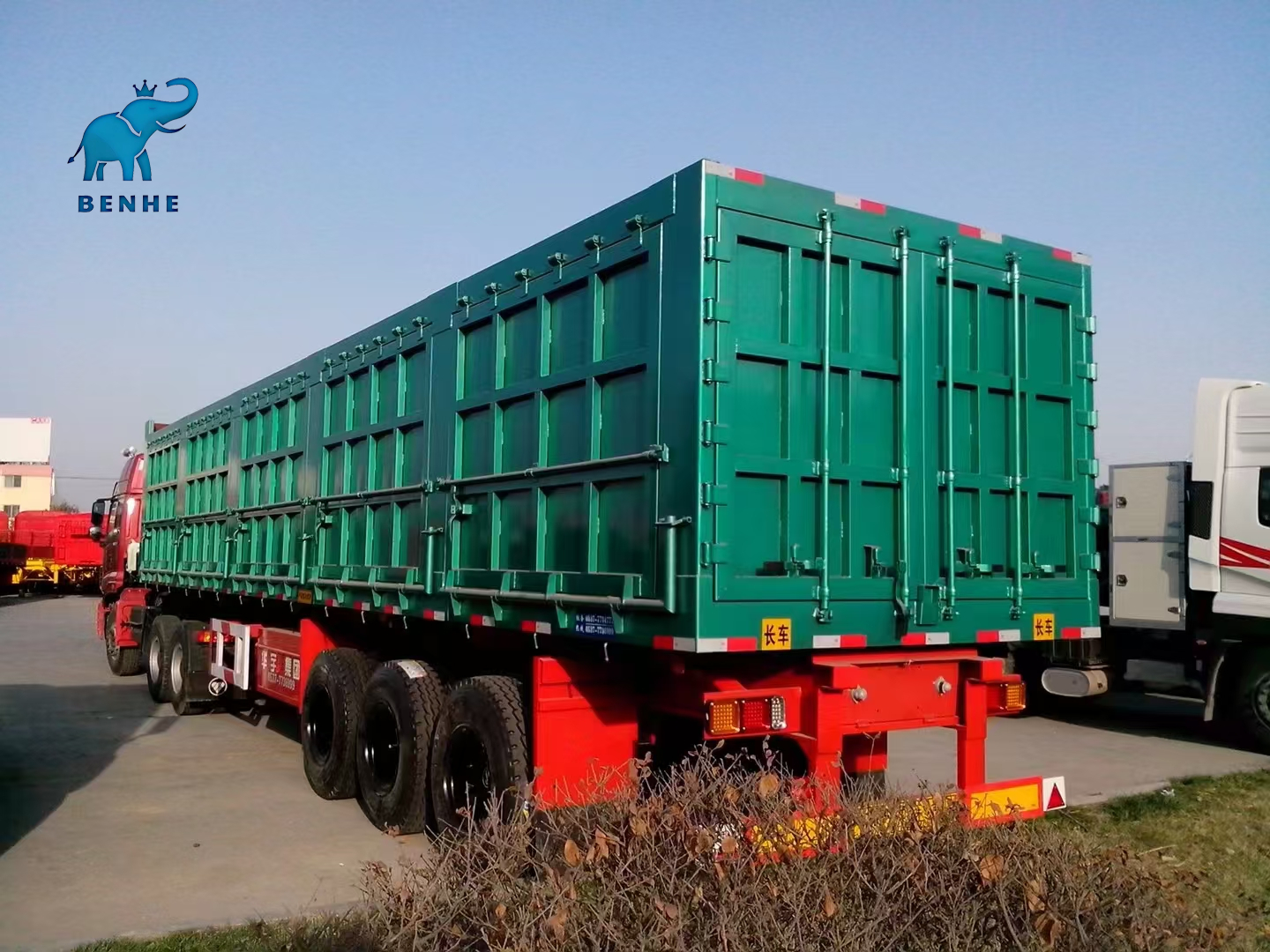

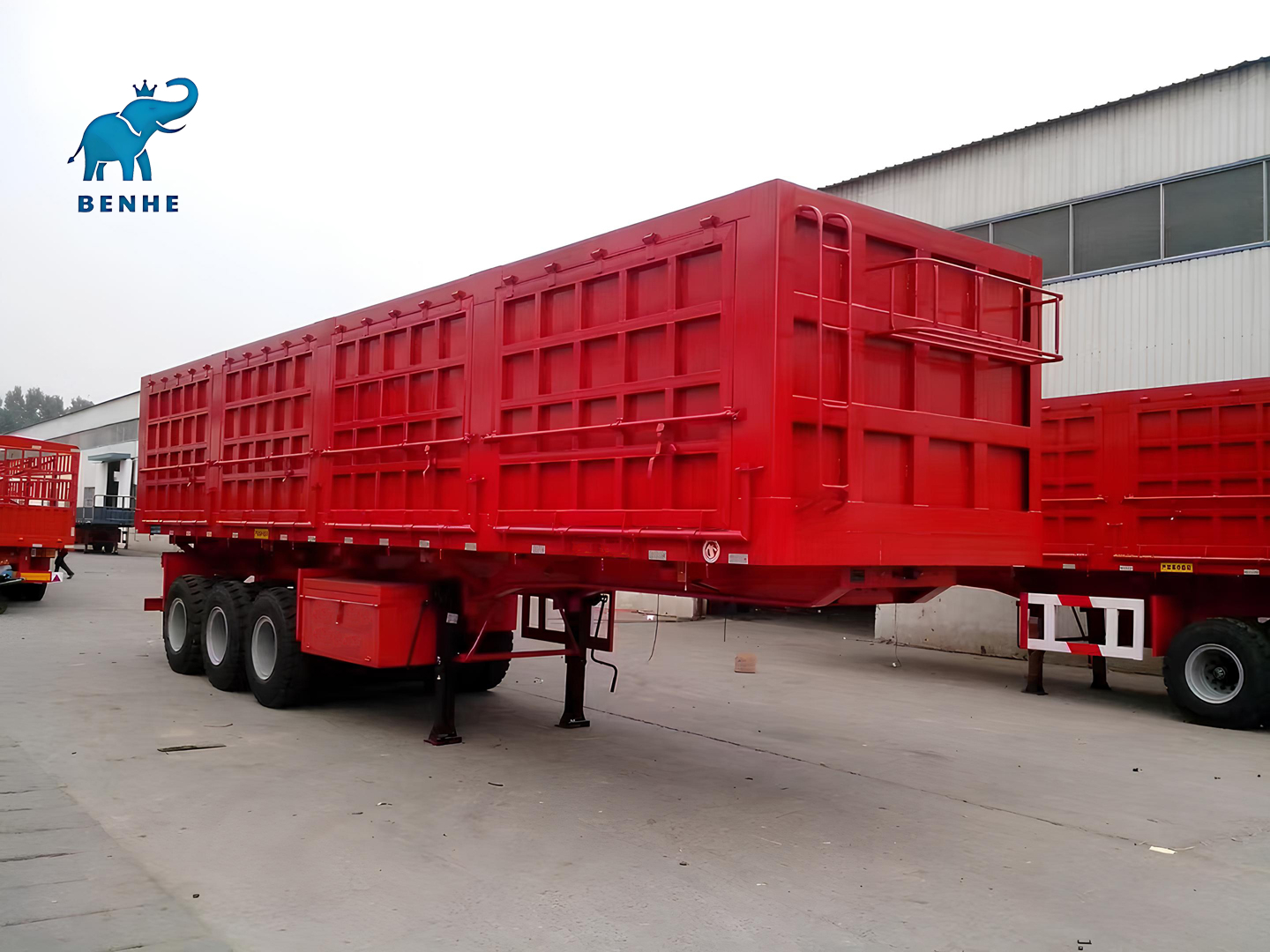

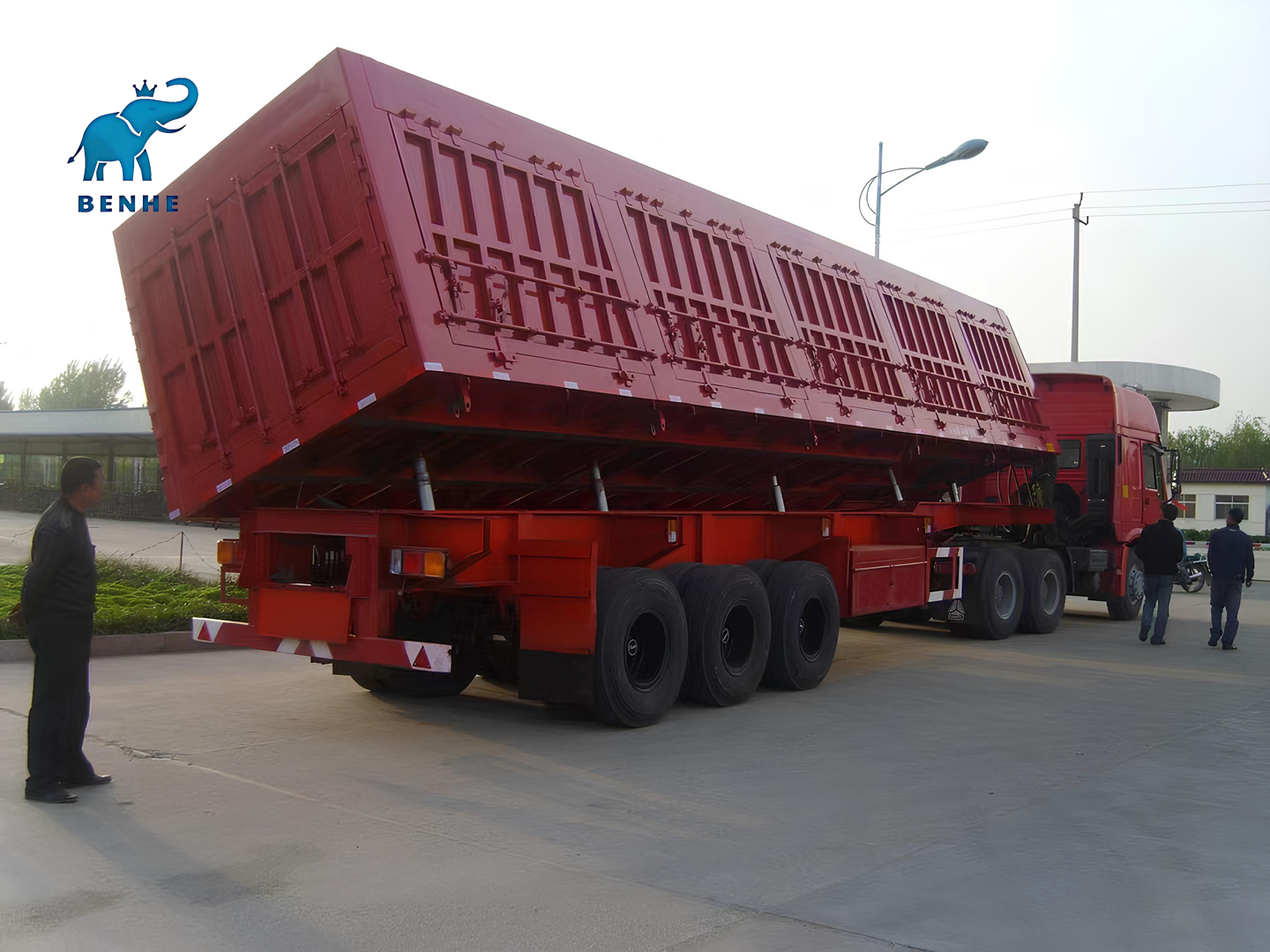

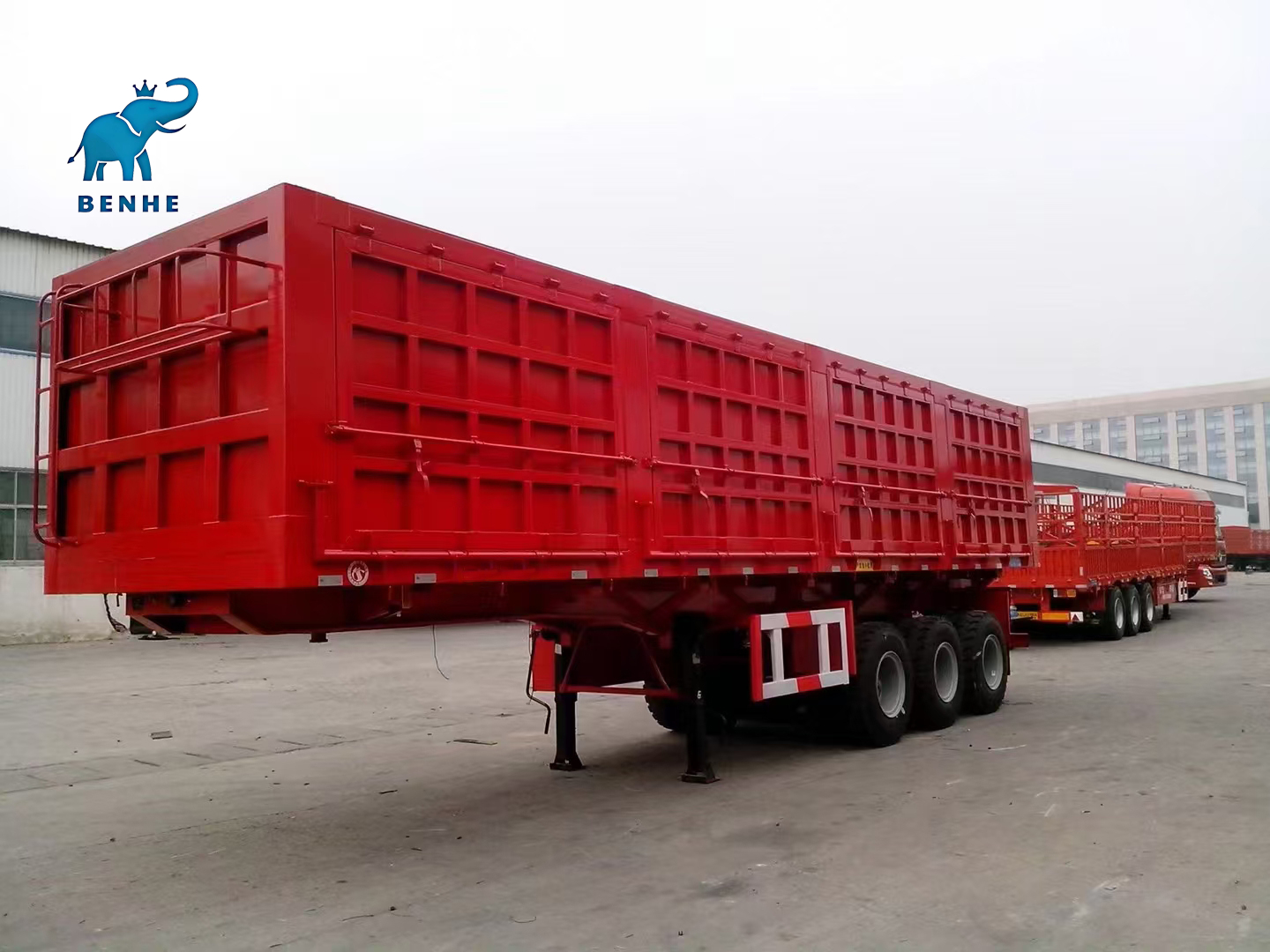

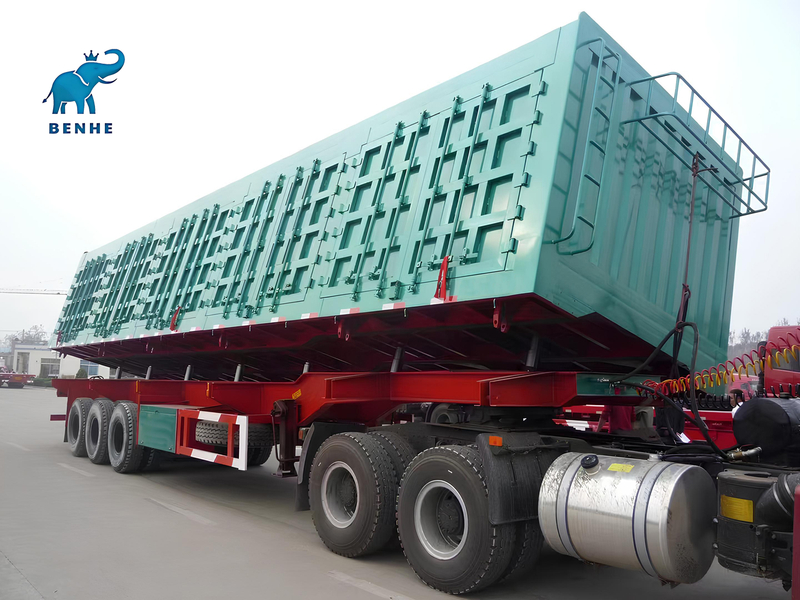

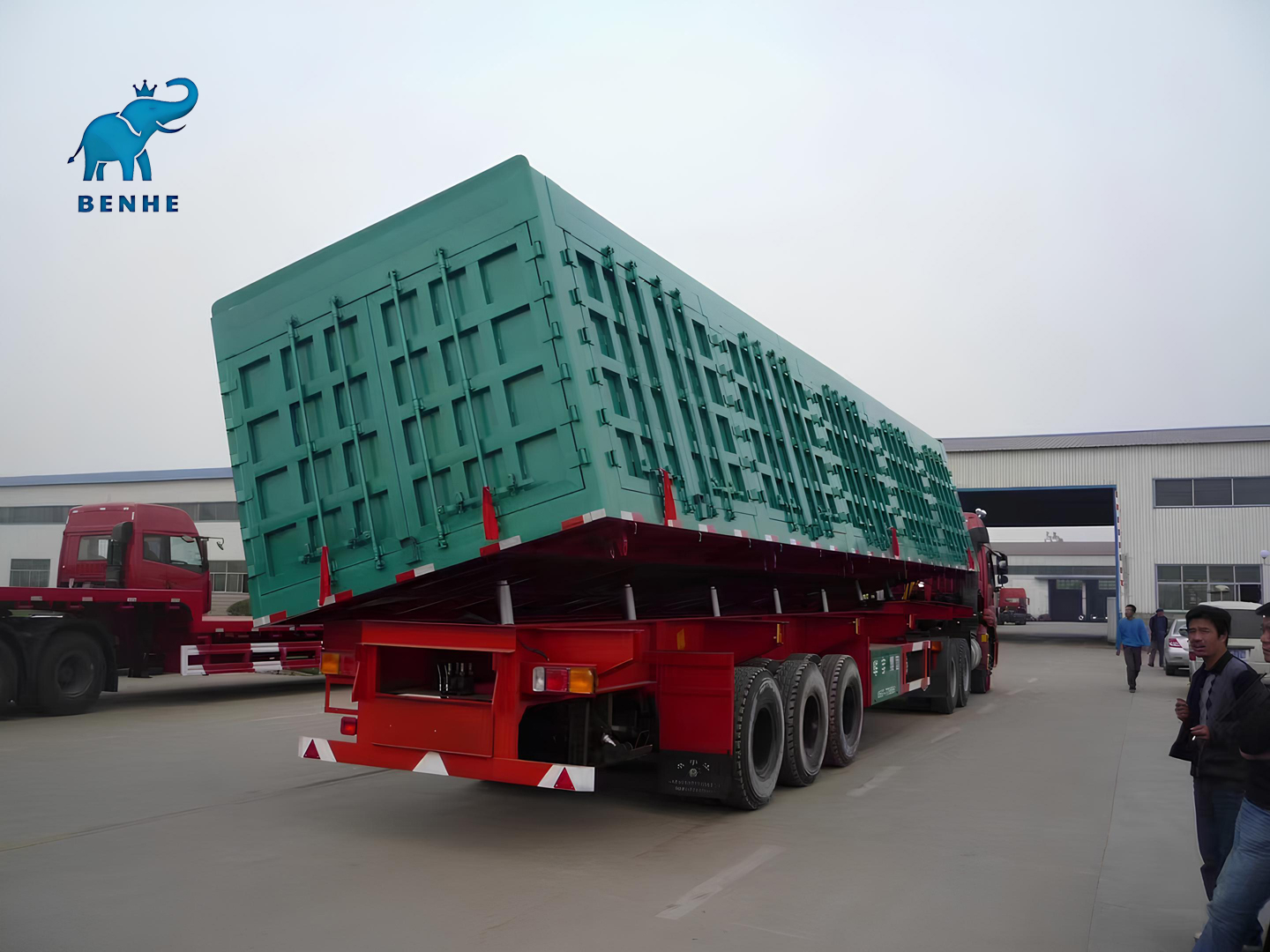

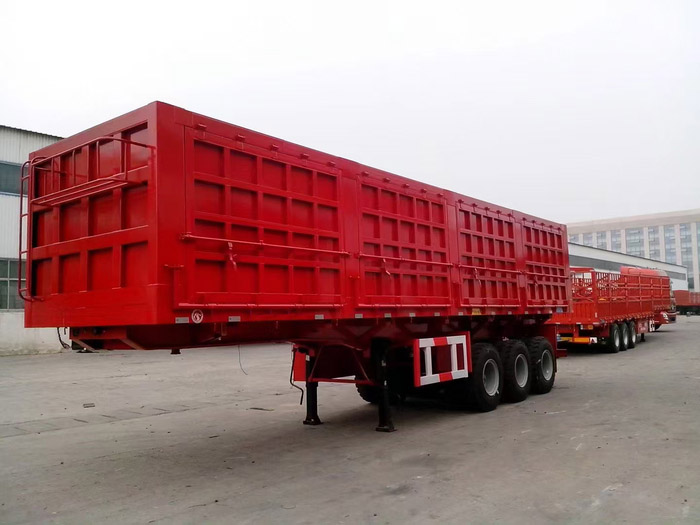

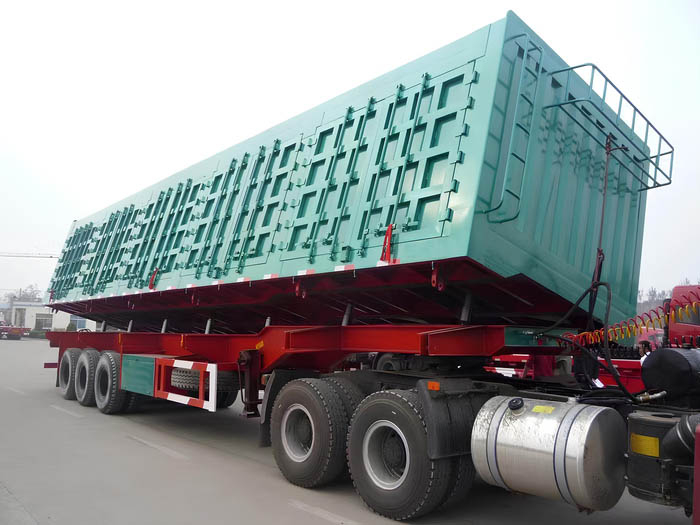

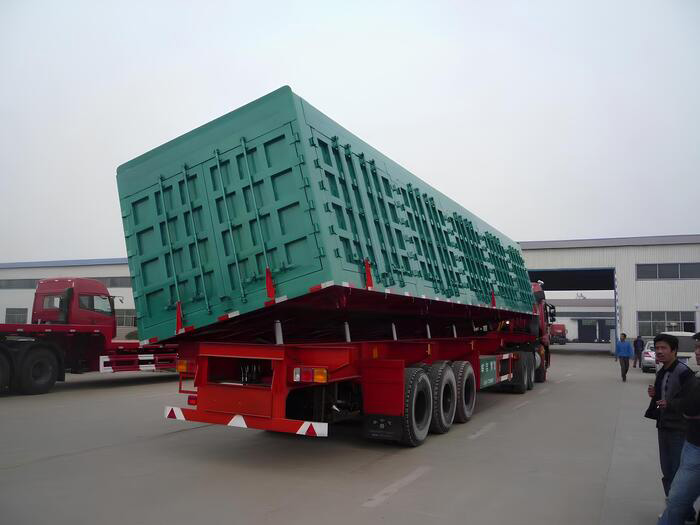

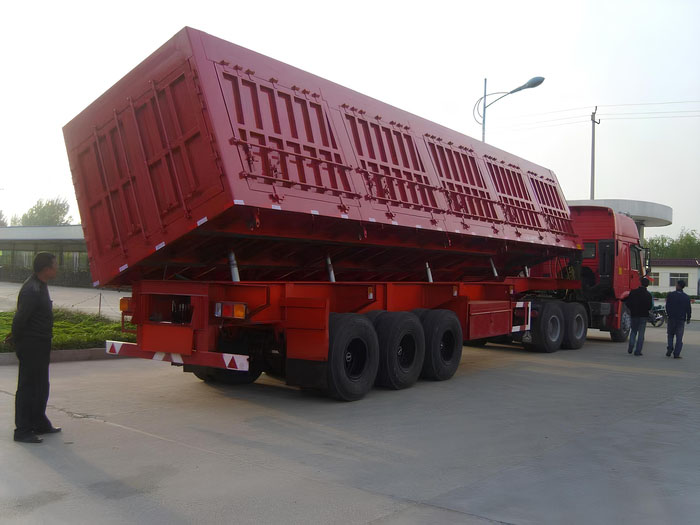

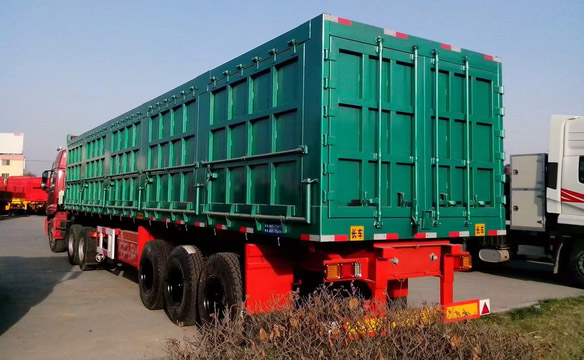

50 tons side dump trailer can be configured for left or right tipping according to customer needs. The hydraulic system controls the tipping of the cargo box, allowing for quick unloading and significantly improving operational efficiency. Side dump trailers are widely used for transporting bulk materials such as coal, ore, sand, and gravel. Our side tipper trailer is constructed from high-strength steel, reinforced with double steel plates on the gooseneck of the beam, and features a thickened mechanical suspension and robust leaf springs, ensuring a sturdy and durable structure.
BENHE 3 axles 50 tons side dump trailer has been treated with anti-corrosion materials, effectively resisting erosion in harsh environments and extending its service life. Our side tipper trailer hydraulic system and key components are sourced from internationally renowned brands, including the Hyva hydraulic system, JOST lading gear, WABCO brake valves, JOST kingpin and BPW axles. It can ensure the trailer reliability and durability. Our side dump trailer also offers customization options, clients can select different body sizes, load capacities and configurations based on their specific needs. Whether for mining, construction sites, or ports, the 50-ton side dump trailer can provide users with efficient and cost-effective transportation solutions.
50 TONS SIDE DUMP TRAILER | |
Manufacturer | 50 Tons |
Dimensions | 10500*2500*3200 mm |
Lifting System | Lifting cylinder 5x130 bore, a shift cylinder |
Loading capacity | 50 Tons |
Axle | 13 Tons, 3 axles, factory configuration (FUWA / BPW optional) |
Main Beam | Q345 Manganese Steel Main beam height: 500mm Upper plate: 14mm ；Middle plate: 8mm Down plate: 16mm |
Side Plate | 6.0mm |
Bottom Plate | 8.0mm |
Suspension | Heavy duty mechanical suspension |
Leaf Spring | 90(W)mm x 13(Thickness)mm x 10 layers, 6 Sets |
Kingpin | JOST brand, 2.0 or 3.5inch (bolted or welded type) |
Landing Gear | 28 Tons |
Braking system | WABCO Emergency relay valve |
Tire Type & Size * NO. | 12R22.5 & 12 pcs |

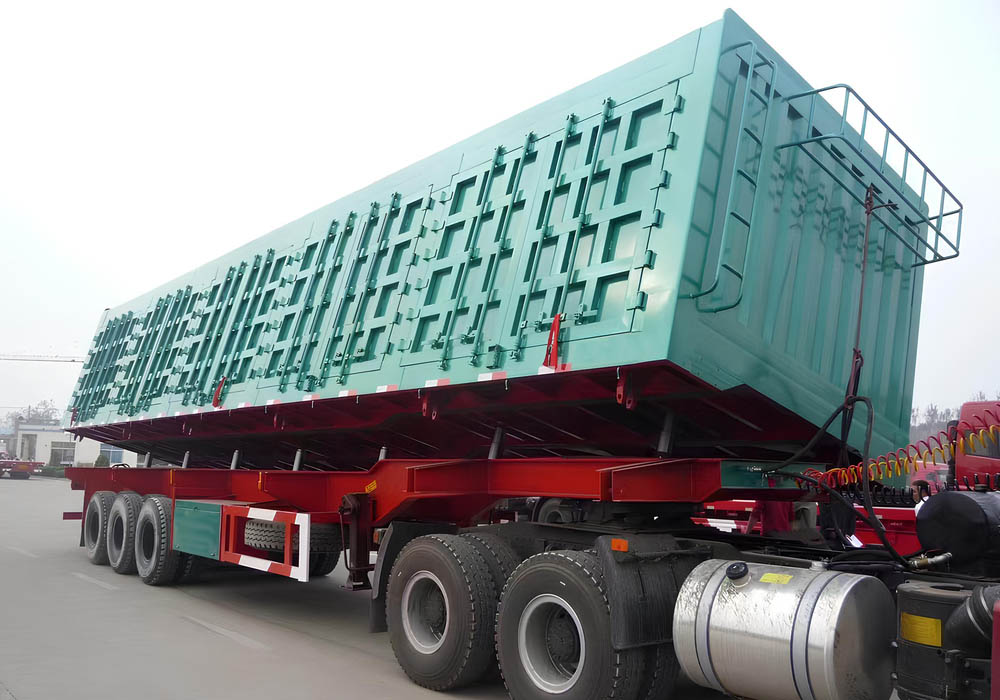

50 Tons Side Dump Trailer Price

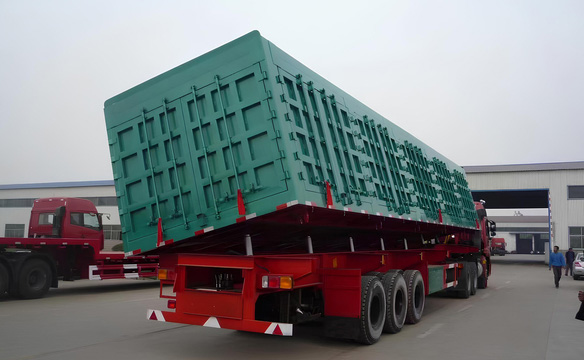

3 Axles Side Dump Trailer for Sale
High load-bearing capacity
The 50 ton side dump trailer is suitable for transporting heavy objects such as sand, gravel, and coal. High-strength steel is used to ensure that the vehicle body is sturdy and durable.
Stability and safety
The 3 axles side tipper trailer is reinforced in more than 20 places, with thickened mechanical suspension, suitable for complex road conditions, and equipped with efficient WABCO brake valves and ABS anti-lock braking systems to ensure driving safety.
Diverse configurations
Select different tires, hydraulic systems and other configurations according to needs, and provide customized services to meet special needs.
Convenient operation
The side dump trailer is easy to operate, has a fast unloading speed, and improves the convenience of operation.
Convenient maintenance
It is easy to maintain and replace parts, and key components are made of wear-resistant and corrosion-resistant materials to extend the service life.

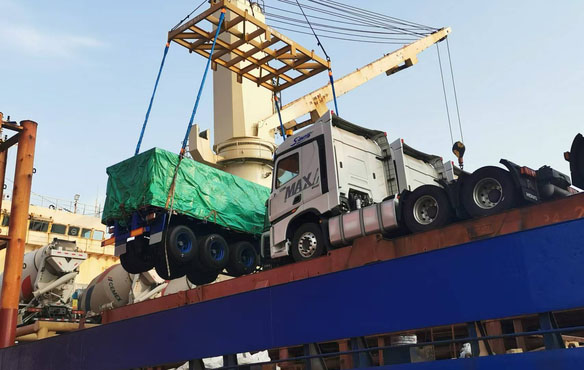

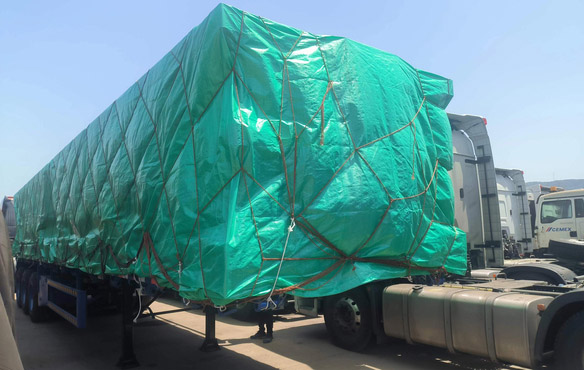

1. Waterproof wax is sprayed before leaving the factory, and the side dump trailer covered with waterproof
rain cloth.
2. Choose the most cost-effective transportation method for customers, bulk shipment, Ro-Ro shipment, container shipment.
