The tri-axle semi lowbed trailer has many unique advantages. Its three axles structural can make sure that the trailer's load is evenly distributed, considerably increase the driving stability. The lowbed trailer can ensure the safety of goods transportation when driving on flat highways or complex road conditions. In addition, the low bed design can save time and cost, more convenient loading and unloading.
The semi lowbed trailer is made of T700 high-strength steel, featuring a well-distributed axle load and a three-axle design to ensure stable load-bearing capacity. The lowbed trailer can be customized, with payload options of 40, 50, and 60 tons, equipped with a mechanical ladder for easy loading and unloading of goods. If you have specific requirements for the configuration or would like to learn more details, please provide your contact information, and we will offer you professional consultation.
BENHE brand tri axle semi lowbed trailer is specially designed for transporting huge engineering machines, such as gate crane, excavators, loader and roller,et. Is equipment which the construction engineering enterprises must selections.
3 Axles Semi Lowbed Trailer | |
Manufacturer | JINAN BENHE MACHINERY CO.,LTD |
Dimensions | 13,000 x 3,000 x 1,700mm （Gooseneck height) |
Load capacity | 40 Tons, 50 Tons, 60 Tons or customized |
Working deck | 9000mm (Length) |
Axle | 13 Tons, 3 axles, factory configuration |
Main Beam | Q345 Manganese Steel Main beam height: 500mm Upper plate: 18mm ；Middle plate: 10mm Bottom plate: 20mm |
Side Beam | 280mm*140mm 工 Beam |
Bottom Plate | 4mm or 5mm checkered plate |
Suspension | Heavy duty mechanical suspension |
Leaf Spring | 90(W)mm x 13(Thickness)mm x 10 layers, 6 Sets |
Kingpin | JOST brand, 2.0 or 3.5inch (bolted or welded type) |
Landing Gear | JOST Brand |
Braking system | WABCO Emergency relay valve |
Rear Ramps | Heavy duty spring ramp |
Tire Type & Size * NO. | 12R22.5 & 12 pcs |
Rim Size * NO. | 9.00*22.5 & 12 pcs |

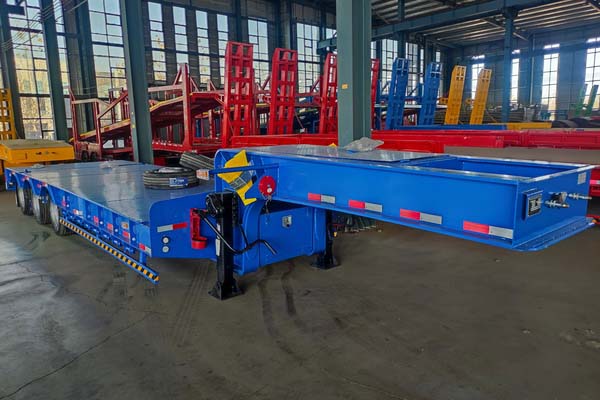

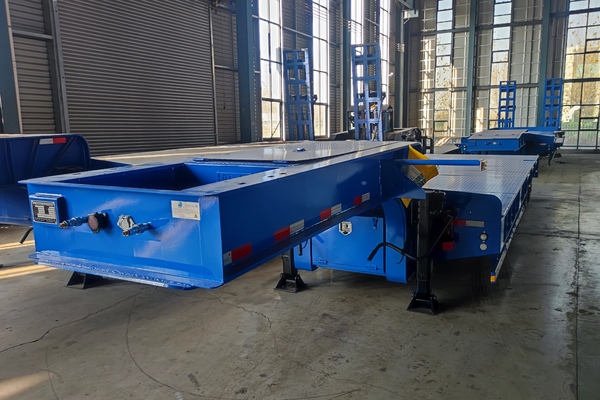

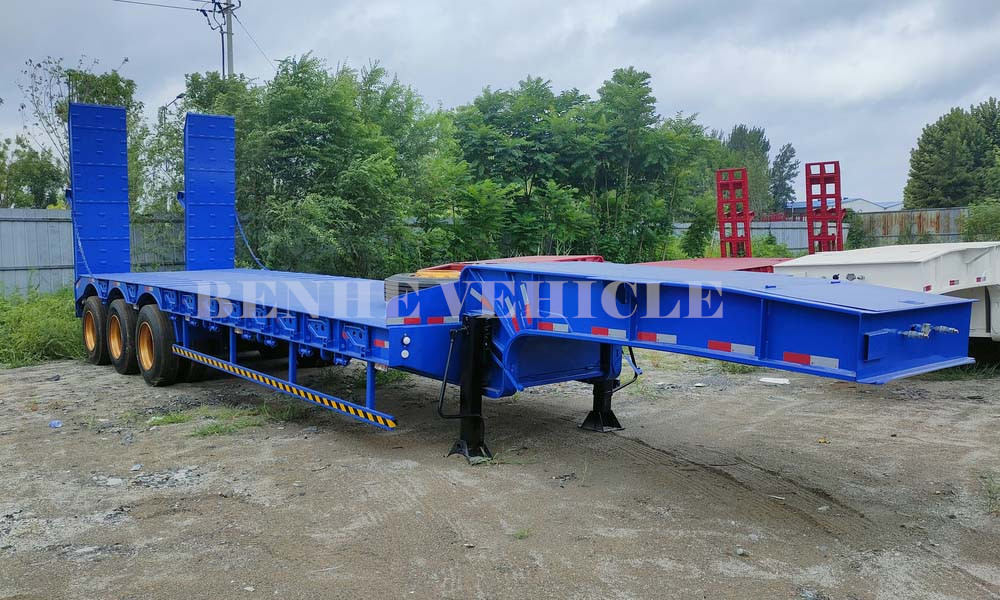

3 Axles Semi Lowbed Trailer for Sale
China Manufacturer Tri-axle Semi Lowbed Trailer
Benhe brand 3 axles semi lowbed trailer adopts powder spray and baking painting process, the trailer color is bright and has stronger adhesion, it is more beautiful than ordinary paint, will not fall off or fade under long-term exposure to sunlight. It is 5-7 years longer than ordinary paint from other manufacturers.
Our semi lowbed trailer is made of Q460 or T700 steel, which is 2-3 times that of Q345 steel. Our low bed trailer with more stronger load-bearing capacity.
The lowbed trailer main beam web adopts double vertical plates, the gooseneck is reinforced with double bottom plates, which can meet the working requirements under complex road conditions, it is very suitable for the African market.
Benhe brand lowbed semi trailer adopts world-renowned spare parts, including JOST 28 tons landing gear, JOST kingpin, BPW axles, WABCO brake valves, etc., to ensure the low loader has a service life of more than 10 years.
Our low bed trailer truck uses the international standard accessories, which are easy to repair, we also provide a 5 years warranty, if there is a quality problem, we will provide spare parts for free during the warranty period.

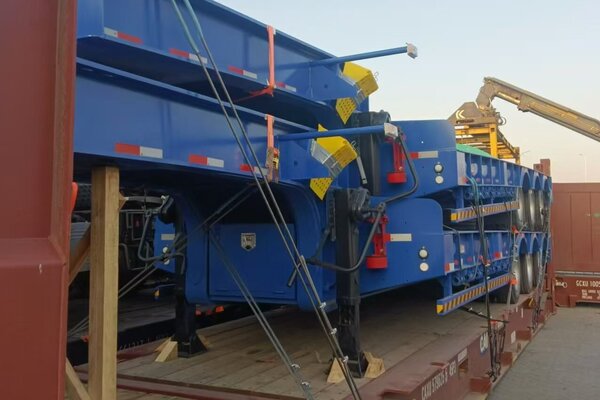

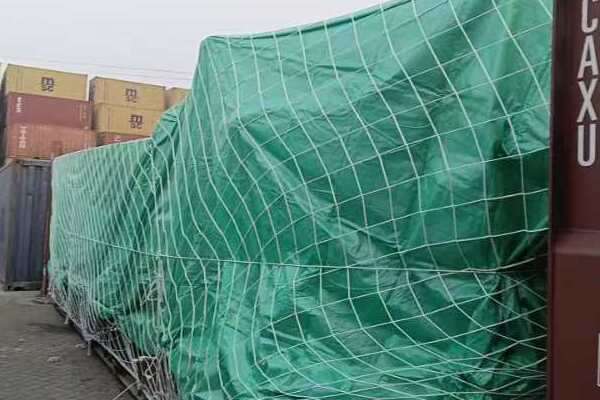

We will spray wax and cover waterproof for the semi lowbed trailer before shipment, which can effectively prevent our 3 axles semi lowbed trailer from being corroded by seawater and sea winds during shipping.
Generally, we can choose the following three modes of transportation: Bulk shipment, RORO or container shipment.
Q: What is your payment method?
A: 30% deposit TT payment, rest balance paid before shipping.
Q: Trailer production time?
A: Usually we produce within 15-25 days after get 30% deposit.
Q: What's your warranty policy?
A: The vehicle frame is guaranteed for 3 years, excluding wearing parts, under normal use if there is damage to the spare parts, we will provide our customers new spare parts with free.
Q: How do you transport the semi trailers?
A: We transport the trailer by RO-RO ship, bulk cargo ship or 40HQ standard container or even 45HQ container. Our factory possesses long-term cooperation with ship agency which can provide you lowest shipping price.
Q: What are your main products?
A: We can provide and supply your various trailers such as heavy-duty low bed semi trailer, flatbed container semi trailers, skeleton container semi trailer, side wall semi trailer, cargo box semi trailer, dump trailers, bulk cement tank trailer, fuel tank semi trailer, stainless steel tank semi trailer, aluminum alloy tank semi trailer, car carrier semi trailer, full trailer, super-link trailer, trucks, spare parts, and can be manufactured as special design.
