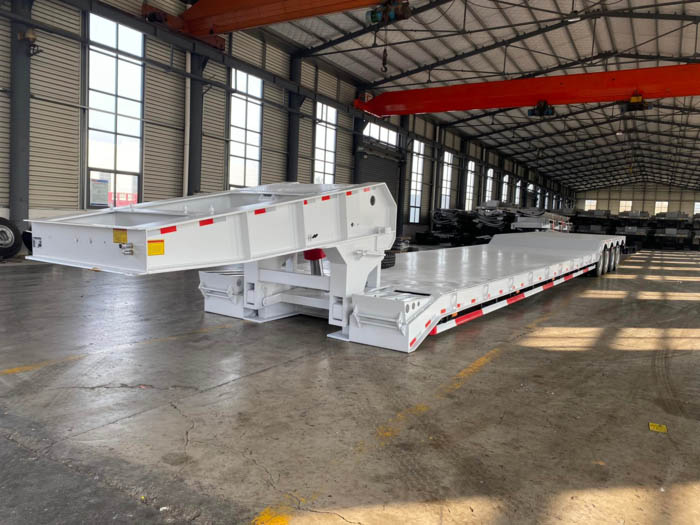

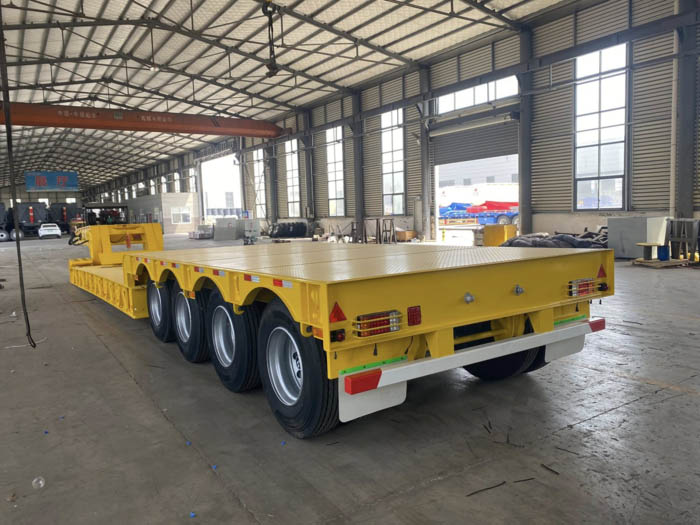

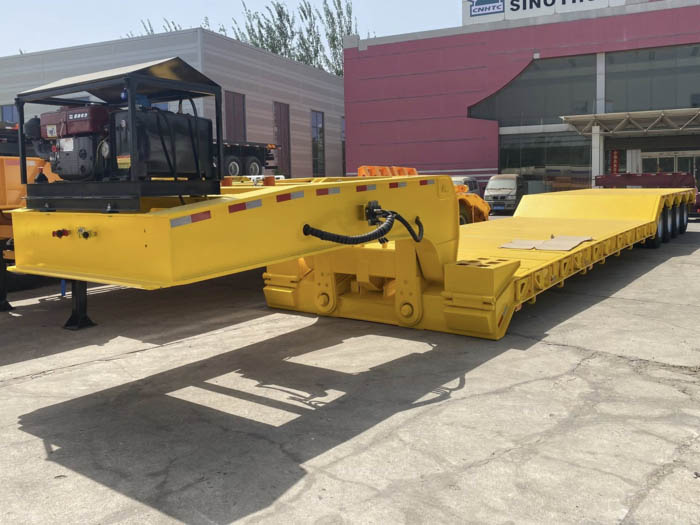

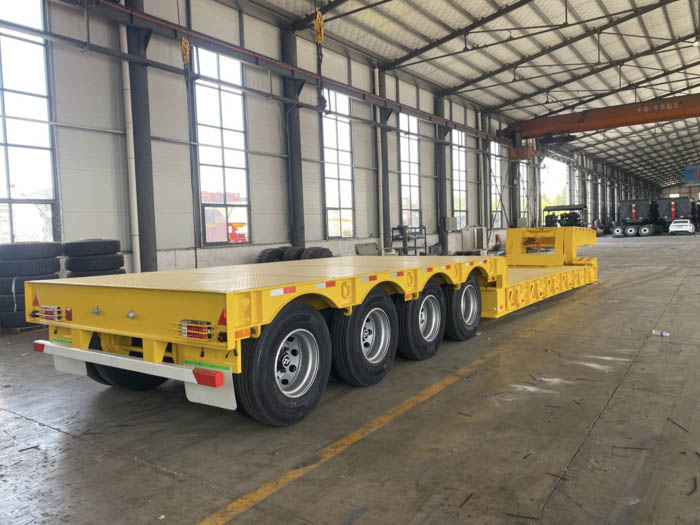

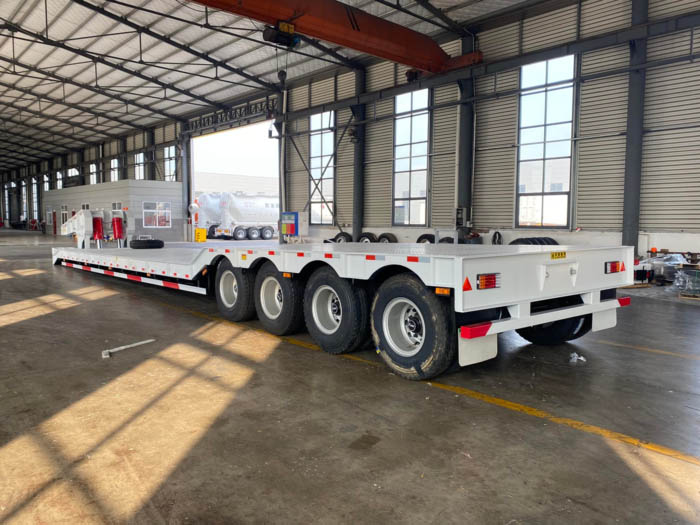

This 4 axles detachable gooseneck lowboy trailer is designed for transporting heavy construction machinery such as excavators, road rollers, loaders, and more. Its detachable gooseneck design and front-loading type, significantly improved transport flexibility and convenience.
The detachable gooseneck lowboy trailer is made of high-strength HG60 steel, the deck height ranges from 700-900mm, effectively lowering the center of gravity for enhanced stability, durability, and safer transportation. The payload and dimensions of this 4-axle detachable gooseneck trailer can be customized to meet specific customer requirements.
4 axles detachable gooseneck lowboy trailer | |
Manufacturer | Jinan Benhe Machinery Co.,Ltd |
Overall Dimension | 19000mm x 3000mm x 2500mm |
Loading Capacity | 80T, 100T or customized |
Axle | 4 axles |
Gooseneck | Removable type with hydraulic |
Main Beam material | HG60 high strength steel |
Extensions | 250mm each side |
Bottom Platform | 5mm checkered plate |
Loading platform length | 8000 mm |
Loading platform height | 850mm |
Suspension | Mechanical suspension |
Height | Loading deck range: 380-880mm Axle deck range: 780-1280mm |
Kingpin | 2"(50mm) or 3.5"(90mm) |
Tire Size * NO. | 12R22.5 & 16 pcs |
Rim Size * NO. | 9.0*22.5 &16 pcs |

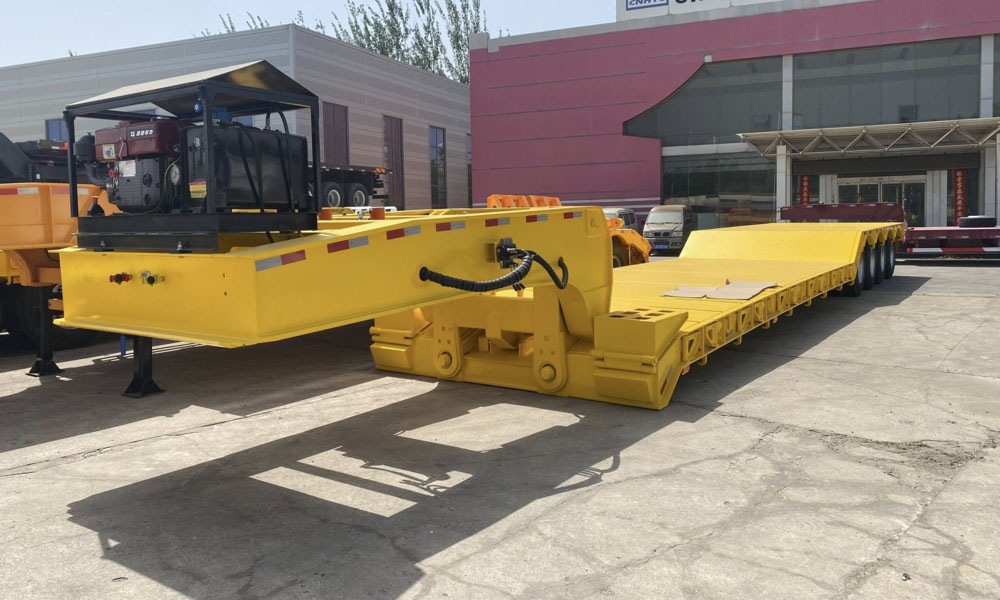

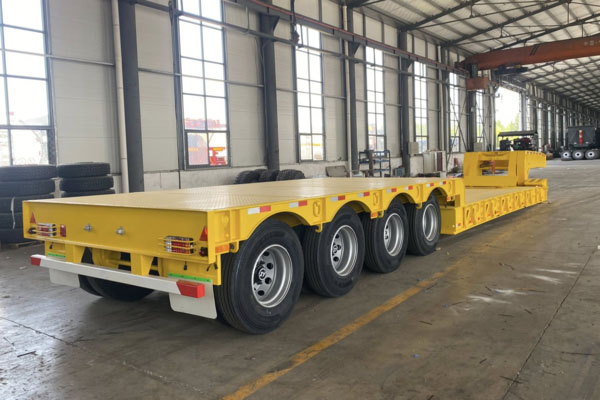

4 Axles Detachable Gooseneck Lowboy Trailer

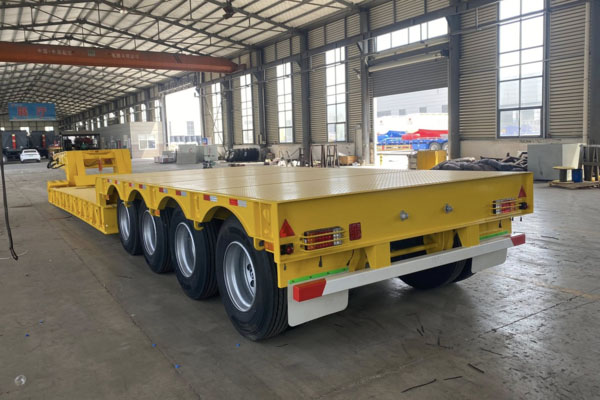

Front Loading Gooseneck Trailer Price
Strong durability: the detachable gooseneck lowboy trailer is constructed from high-strength steel, ensuring exceptional durability. This design prevents deformation or cracking, thereby extending its service life.
High load-bearing capacity: specially designed for high load-bearing capacity, making it suitable for transporting heavy goods such as large machinery, equipment, and engineering vehicles.
Lowering the center of gravity: The gooseneck structure effectively reduces the vehicle's center of gravity, enhancing driving stability. This design is particularly suitable for long-distance transportation.
Removable gooseneck design: Easy loading and unloading of goods, making it particularly suitable for irregularly shaped or oversized goods.
Anti-slip bottom plate: the removable gooseneck lowboy trailer features an anti-slip bottom plate, which prevents goods from sliding and ensures safe transportation.
Easy Maintenance: The structural design is simple, which is convenient for daily maintenance and maintenance
1. Before leaving the factory, we will apply a thick layer of wax to the detachable lowboy trailer to prevent paint corrosion during sea transportation.
2. The removable gooseneck lowbed trailer will be covered with a rain cloth before shipment, so that it will not rust after customer receives it.
Jinan Benhe Machinery Co., Ltd., established in 2010, is a leading manufacturer of semi trailers in China. Our primary products include flatbed semi trailer, low bed semi trailer, fence semi trailer, fuel tanker trailer, dump trailer, cement bulker trailers, special-purpose semi-trailers and trailer parts. The production plant covers an area of 300,000 square meters and employs over 600 staff members. Thanks to our advanced technology, reliable quality, and exceptional service, Benhe trailer hold a 30% share of the Chinese market and are also exported worldwide. We have successfully sold our products to more than 80 countries, including Ghana, Zimbabwe, Zambia, Tanzania, Sudan, Nigeria, Kenya, Uganda, Mozambique, Namibia, Angola, Botswana, Malawi, Rwanda, Congo, Cote d'Ivoire, Sierra Leone, Senegal, Cameroon, Mali, Mexico, Chile, Ecuador, Saudi Arabia, United Arab Emirates, Uzbekistan, Kazakhstan etc.
FAQ:
Q: What's the main product of Jinan Benhe Machinery Co.,Ltd?
A: Our main products including detachable lowboy trailer, low bed trailer, flatbed trailer, fence trailer, dropside trailer, tipper trailer, fuel tanker trailer, trucks and spare parts.
Q: If your trailers can be customized?
A: We can make the trailer according to your requirements, different load capacity and diemensions.
Q: What is your payment method?
A: 30% deposit before production and 70% balance before shipment.
Q: What's the delivery time?
A: Our production time is 20-30 working days.
Q: What's your semi trailer warranty?
A: Our trailer chassis warranty period is 3 years, except for man-made damage,free replacement of new parts.
