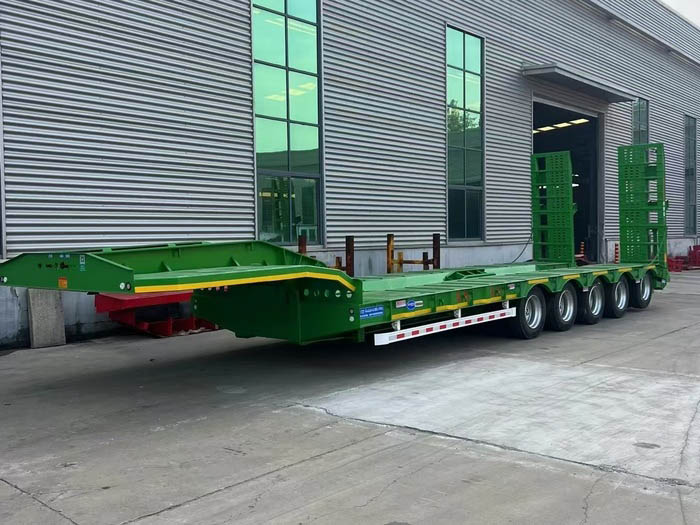

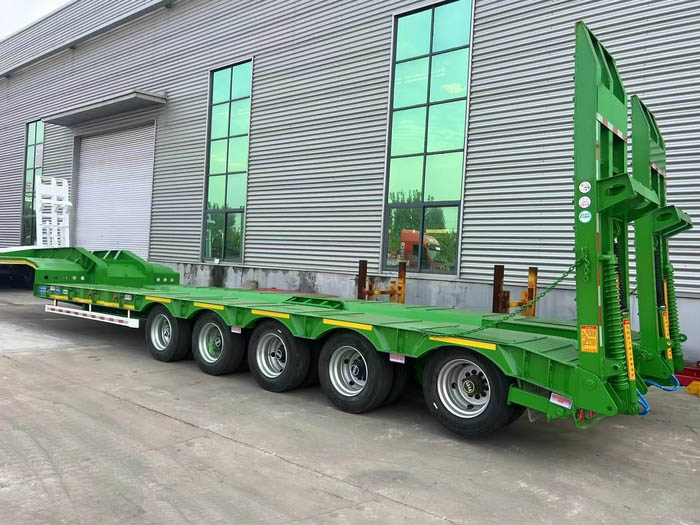

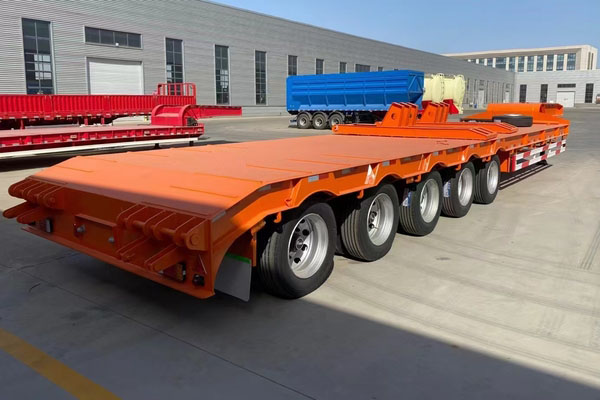

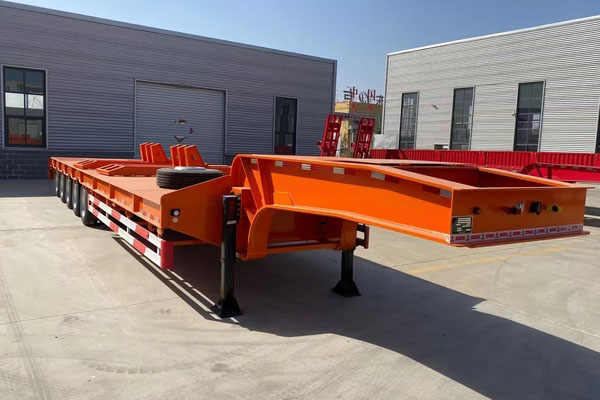

5 axles low loader trailer is designed for transporting extra-wide and extra-heavy goods. The 5 axles drop deck trailer effectively distributes load pressure, enhancing its overall load-bearing capacity. With a lower working deck height, which is convenient for loading and unloading large machinery, equipment, engineering components, and non-detachable heavy goods.
The 5 axles low loader trailer is welded with high-strength steel, providing exceptional resistance to bending and torsion. It can adapt to long-distance transportation needs under complex road conditions. This lowbed trailer is widely used in large-scale logistics fields such as wind power equipment, engineering machinery, and transformers, etc., this low bed trailer is an important equipment in the heavy-duty transportation industry.
The 5 axles low loader trailer is a customized product, which needs to be designed according to dimensions and load capacity required by the customer. Please review the specifications for our 5 axles 120 tons low bed trailer below, which were tailored for a Nigeria customer previously.
5 Axles Low Loader Trailer | |
Manufacturer | JINAN BENHE MACHINERY CO.,LTD |
Dimensions | 16,000 x 3,000 x 1,800mm （Gooseneck height) |
Load capacity | 120 Tons |
Working deck | 12500mm (Length) |
Axle | 16 Tons, 5 axles, factory configuration (FUWA / BPW optional) |
Side Beam | 300mm*180mm 工 Beam |

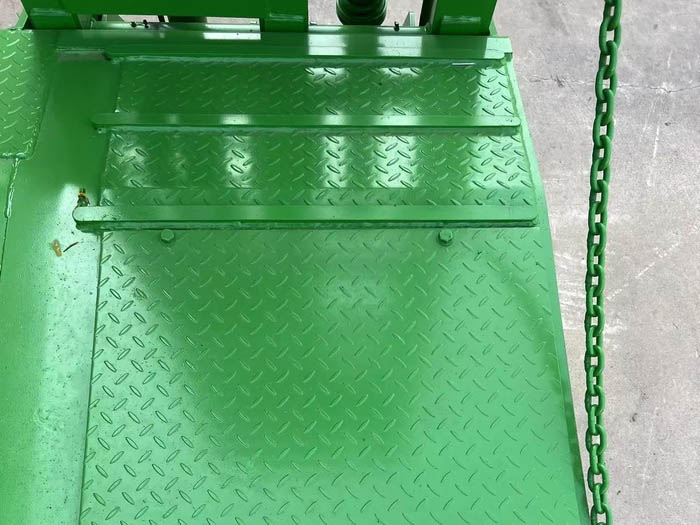

Bottom Plate | 5mm checkered plate |
Suspension | Heavy duty mechanical suspension |
Leaf Spring | 90(W)mm x 16(Thickness)mm x 10 layers, 10 Sets |
Kingpin | JOST brand, 2.0 or 3.5inch (bolted or welded type) |
Landing Gear | JOST Brand |
Braking system | WABCO Emergency relay valve |

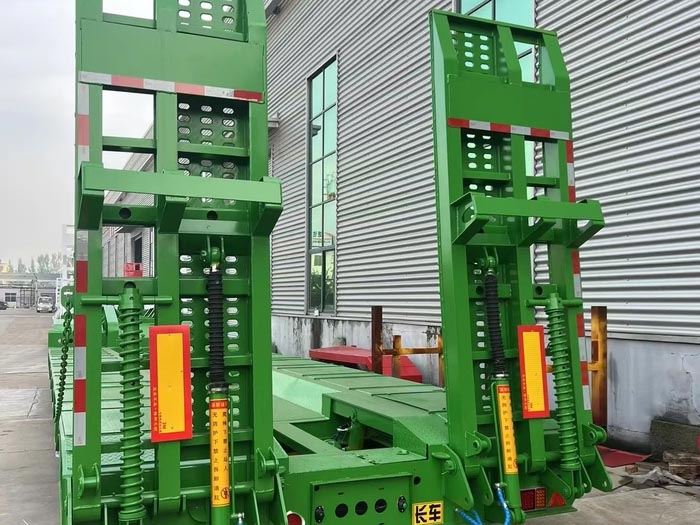

Rear Ramps | Heavy duty spring ramp |
5 axles low loader trailer manufacturer
120 tons low loader truck trailer price
High Load Capacity
The 5 axles design effectively disperses the load, the 5 axles low loader trailer can carry 100-120 tons or even more, which is suitable for transporting overweight goods, such as large machinery, equipment, and engineering components.
Low Working Deck
The working deck height of the 5 axles lowbed trailer is usually 0.8-1.2 meters, this design facilitates the loading and unloading of heavy equipment using ladders or hoisting methods.
Wide Adaptability
The 5 axles low loader trailer can transport oversized goods, including wind turbine blades, transformers, and excavators. The cargo platform can be extended or pulled out to accommodate items of varying lengths and widths.
Optimized Passability
This flat lowbed trailer is equipped with lifting axle or steering axle, which can be lifted when empty to reduce tire wear and enhance passability when heavily loaded, especially suitable for complex road conditions.
Modular Design
This 5 axles low bed trailer can be equipped with side rails and brackets to accommodate various types of cargo, such as containers and steel coils.
Convenient Maintenance
Standardized accessories, such as JOST, BPW and WABCO ect., easy to repair and have a sufficient supply of parts.
The low loader trailer will be coated with wax and covered with a tarpaulin to protect the paint surface from erosion during sea transportation.
We will select the most suitable transportation plan for our customers, whether it be a bulk carrier or a RORO (Roll-on/Roll-off) vessel.
Where is your factory located?
A: Our factory is located in Liangshan Town, Jining City, Shandong province, China.
How long it will take for an order to be delivered?
A: 20 to 30 working days after we received your 30% prepayment, the specific delivery time depends on the items and the quantity of your order.
How about the warranty?
A: Our company promise a one-year warranty period, during this period, under normal use if there is damage to the accessories, we will provide our customers with free new accessories.
If Customized Service Provided ?
A: Yes, Please Contact Our Sales Manger, We Can Offer Customized Service On Vehicle Design / Painting/Logo, Etc.
How should I trust you?
A:The good faith management is our philosophy, and you are welcomed to visit our company any time.
