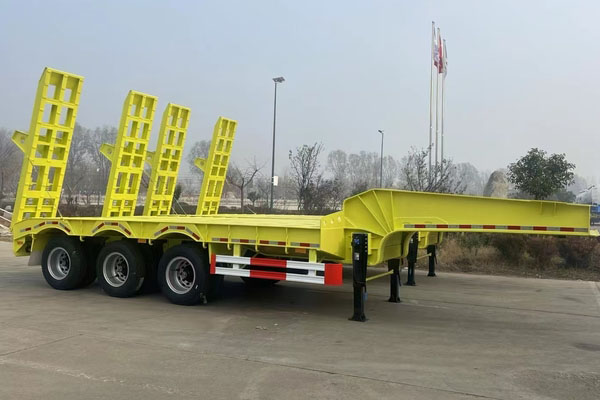

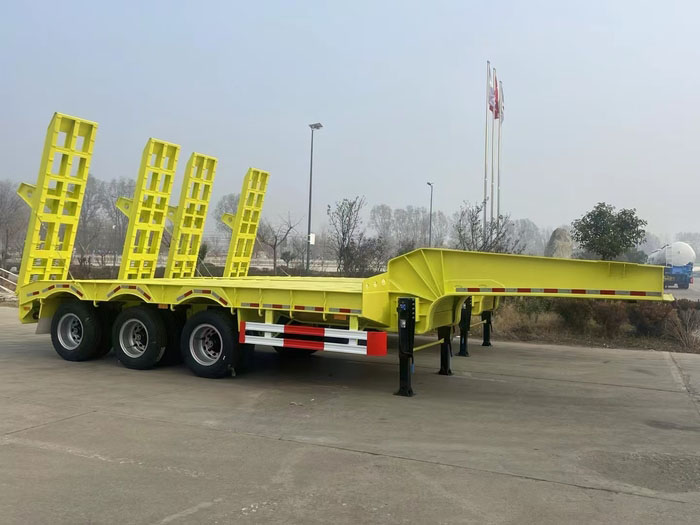

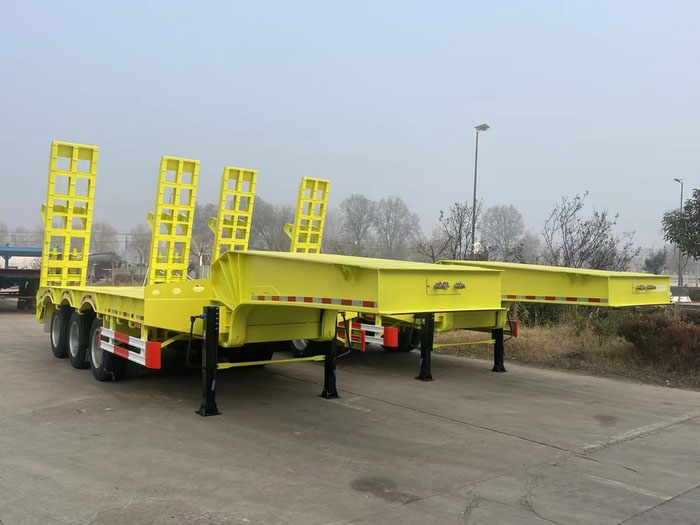

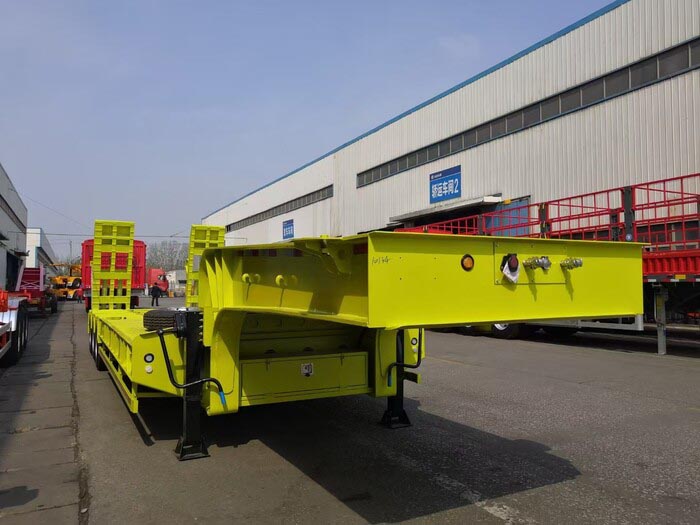

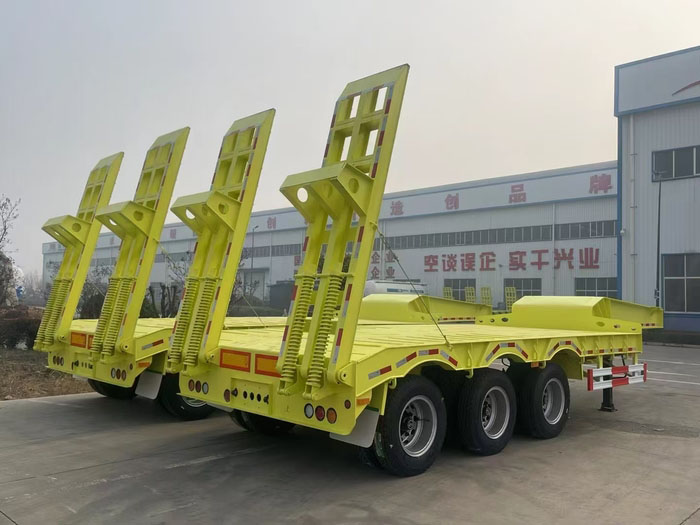

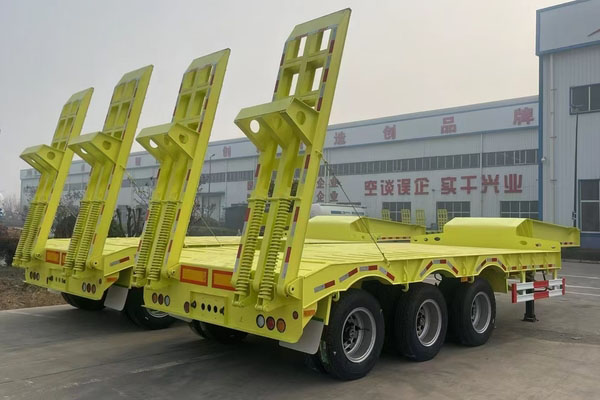

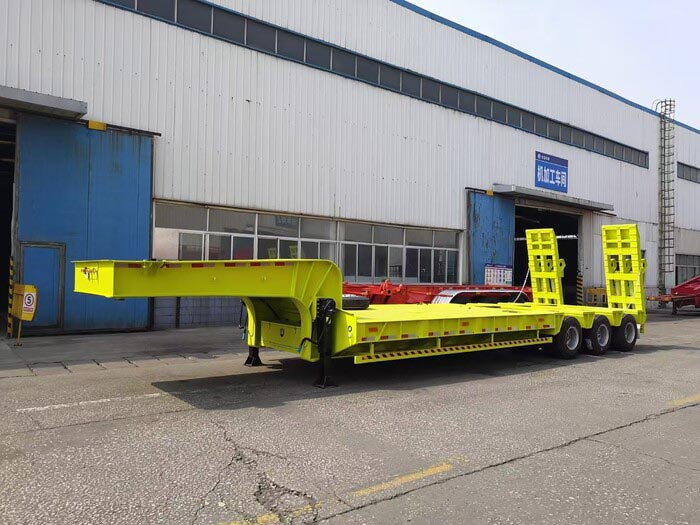

Benhe brand 50 tons 40ft low bed truck trailer is designed for transporting heavy loads and large pieces of cargo. The working platform has a length of 9 meters and a height ranging from 1 to 1.3 meters, which can be customized according to customer needs. The low bed truck trailer can be equipped with four container twist locks for transporting 20-foot container.
50 tons 40ft low bed truck trailer with a high load capacity, a low cargo platform height, and a stable structure. This 40ft low bed trailer is suitable for both long-distance and short-distance transportation of non-detachable heavy goods, including construction machinery, large equipment, and steel.
BENHE brand 50 Tons low bed trailer is specially designed for transporting huge engineering machines, such as gate crane, excavators, loader and roller,et. Is equipment which the construction engineering enterprises must selections.
50 Tons 40ft Low Bed Truck Trailer | |
Manufacturer | JINAN BENHE MACHINERY CO.,LTD |
Dimensions | 13,000 x 3,000 x 1,750mm （Gooseneck height) |
Load capacity | 50 Tons or customized |
Working deck | 9000mm (Length) |
Axle | 13 Tons, 3 axles, factory configuration |
Main Beam | Q345 Manganese Steel Main beam height: 500mm Upper plate: 18mm ；Middle plate: 10mm Bottom plate: 20mm |
Side Beam | 280mm*140mm 工 Beam |
Bottom Plate | 5mm checkered plate |
Suspension | Heavy duty mechanical suspension |
Leaf Spring | 90(W)mm x 16(Thickness)mm x 10 layers, 6 Sets |
Kingpin | JOST brand, 2.0 or 3.5inch (bolted or welded type) |
Landing Gear | JOST Brand |
Braking system | WABCO Emergency relay valve |
Rear Ramps | Heavy duty spring ramp |
Tire Type & Size * NO. | 12R22.5 & 12 pcs |
Rim Size * NO. | 9.00*22.5 & 12 pcs |
50 Tons 40ft Low Bed Truck Trailer for Sale
China 50 Tons 40ft Low Bed Truck Trailer Price
High Load-Bearing Capacity
50 ton 40ft low bed truck trailer is made of Q345 steel, upper flange 18mm, lower flange 20mm, and the web 10mm, which is thicker than other flat lowbed trailers on the market, with strong load-bearing capacity and suitability for various road conditions.
Low Cargo Platform Height
The low bed truck trailer working deck height is generally between 0.9 to 1.3 meters, which is convenient for loading and unloading of large equipment, lowers the center of gravity, and enhances driving stability.
Heavy-Duty Ladder: Optional hydraulic or folding ladder, heavy-duty thickened ladder, to meet the demands of loading and unloading equipment without deformation or breakage.
Reinforced Suspension System
Benhe brand 50 tons low bed trailer adopts three axles balanced suspension system, with a load capacity of 13 tons per axle. It is equipped with leaf spring suspension, 16mm thickened leaf springs for enhanced load-bearing capacity.
Our 40ft low bed trailer uses the international standard accessories, which are easy to repair, we also provide a 5 years warranty, if there is a quality problem, we will provide spare parts for free during the warranty period.
We will spray wax and cover waterproof for low bed trailer before shipment, which can effectively prevent our low bed truck trailer from being corroded by seawater and sea winds during shipping.
Generally, we can choose the following three modes of transportation: Bulk shipment, RORO or container shipment.
Q: What is your payment method?
A: 30% deposit TT payment, rest balance paid before shipping.
Q: Trailer production time?
A: Usually we produce the low bed within 20-25 days after get 30% deposit.
Q: What's your warranty policy?
A: The low bed truck trailer frame is guaranteed for 3 years, excluding wearing parts, under normal use if there is damage to the spare parts, we will provide our customers new spare parts with free.
Q: How do you transport the 40ft low bed trailer?
A: We transport the trailer by RO-RO ship, bulk cargo ship or even 45HQ container. Our factory possesses long-term cooperation with ship agency which can provide you lowest shipping price.
Q: What are your main products?
A: We can provide and supply your various trailers such as heavy-duty low bed truck trailer, flatbed container semi trailers, skeleton container semi trailer, side wall semi trailer, cargo box semi trailer, dump trailers, bulk cement tank trailer, fuel tank semi trailer, stainless steel tank semi trailer, aluminum alloy tank semi trailer, car carrier semi trailer, full trailer, super-link trailer, trucks, spare parts, and can be manufactured as special design.
